Description
The TEN 30-2422WIN is a 2-output 30W board-mount isolated high performance DC/DC Converter featuring ultra wide 4:1 input voltage ranges. It offers 9 to 36VDC input voltage range and 12/-12VDC at 1.25A output voltages. Standard features include remote ON/OFF, output voltage trimming, overvoltage protection, under-voltage lockout, overtemperature and short-circuit protection. This device is suitable for many applications where isolated, tightly regulated voltages are required and space is limited on the PCB.
- Adjustable output voltage
- 1500VDC I/O isolation
- 87% Typical efficiency
- 24VDC Nominal input voltage
Applications
Power Management, Industrial, Communications & Networking
Product details
| Power Supply Applications: ITE |
| Input Ratio: 4:1 |
| Output Power Max: 30W |
| No. of Outputs: 2 Output |
| Output Voltage - Output 1: 12V |
| Output Current - Output 1: 1.25A |
| Output Voltage - Output 2: -12V |
| Output Current - Output 2: 1.25A |
| Output Regulation: - |
| Isolation Voltage: 1.5kV |
| DC / DC Converter Type: DIP |
| Input Voltage DC Nom: 24V |
| DC / DC Converter Output Type: Fixed |

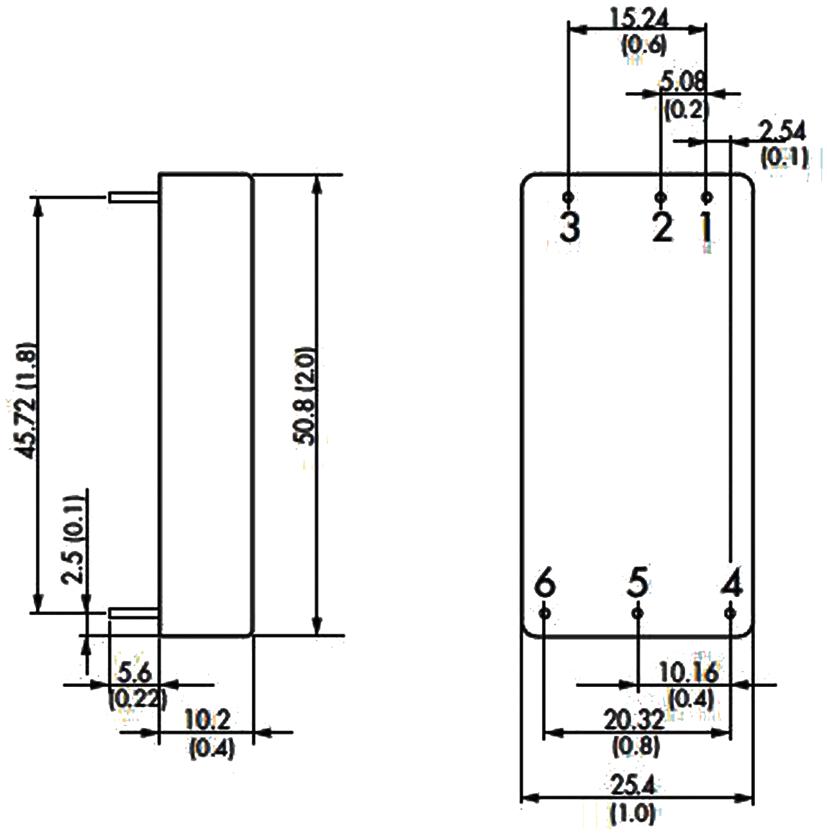

| Width: 25.4mm |
| Height: 10.2mm |
| Depth: 50.8mm |
| Input Voltage DC Min: 9V |
| Input Voltage DC Max: 36V |
| Product Range: TEN 30WIN Series |
Other details
| Brand | TRACO POWER |
| Part Number | TEN 30-2422WIN |
| Quantity | Each |
| Technical Data Sheet EN |  |
