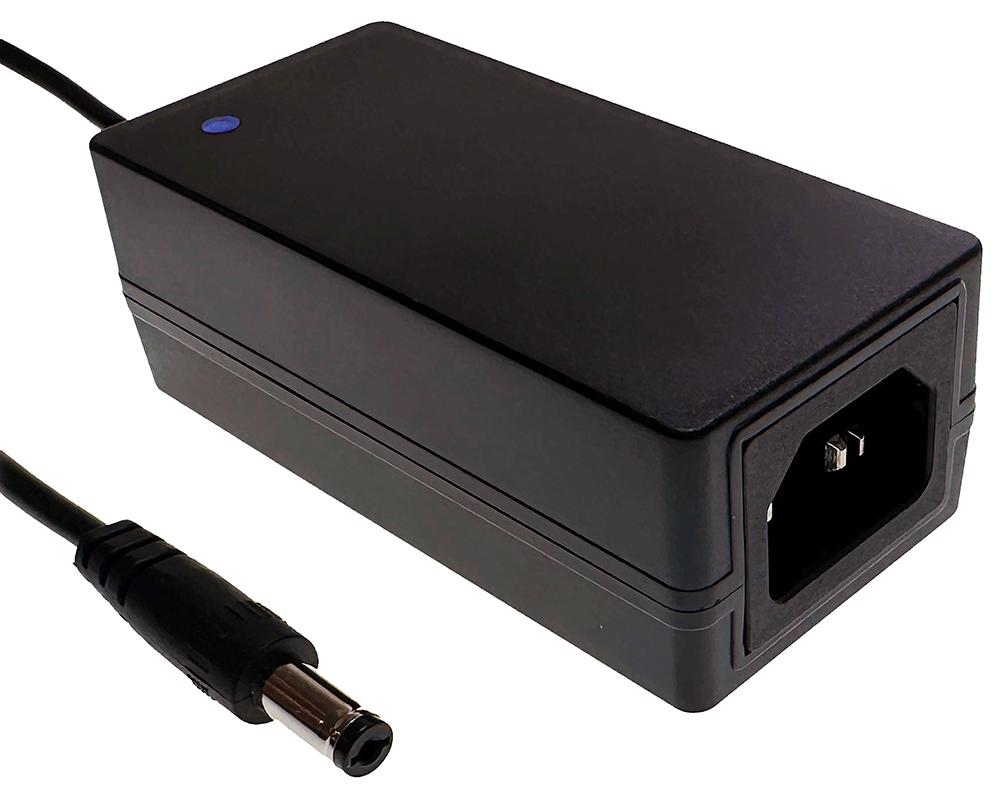

Product Overview
- Input voltage range from 100 to 240V AC (90 to 264V ACmax.), input frequency range from 47 to 63Hz
- Quality and reliability
- 1.8metres AC cord length (where supplied), 1.5metres DC cord length
- 2.1 x 5.5 x 12mm (female) DC connector, +ve (positive) centre polarity
- Efficiency is 88%, short circuit, over current, over voltage protection
- Class I design 3 Pin C14 input
- Operating temperature range from 0°C to +40°C
- Dimension is 100 x 50 x 33mm
Product details
Technical Specifications
Power Supply Applications
-
Output Current - Output 1
2A
Output Current - Output 2
-
Output Voltage - Output 3
-
Power Supply Output Type
Fixed
SVHC
No SVHC (21-Jan-2025)
Output Voltage - Output 1
12V
Output Voltage - Output 2
-
Output Connector
Barrel Plug 2.1mm x 5.5mm
Output Current - Output 3
-
Input Voltage VAC
100V AC to 264V AC
Other details
| Brand |
TIGER POWER SUPPLIES |
| Part Number |
TP1130 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
