Thermaltake Toughpower GF3 Snow 1200W 80 PLUS Gold Power Supply

Keep your rig up and running with the Toughpower GF3 Snow 1200W 80 PLUS Gold Power Supply from Thermaltake. Featuring a standard ATX form factor and Intel ATX Version 3.0 compliance, this 1200W PSU utilizes a single +12V rail and 140mm cooling fan. Furthermore, it boasts an 80 PLUS efficiency rating and delivers 60% low-load efficiency. The Thermaltake Toughpower GF3 Snow 1200W 80 PLUS Gold Power Supply has a mean time between failures (MTBF) of 100,000 hours, minimum.

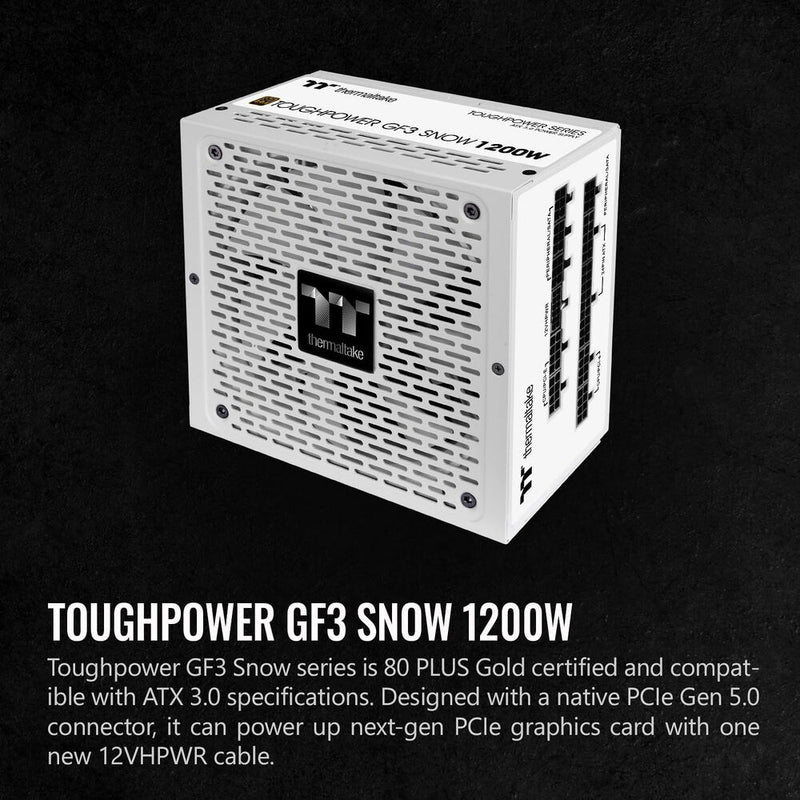

The Toughpower GF3 Snow 1200W 80 PLUS Gold-certified semi-modular PSU is designed to meet ATX 3.0 standards, and it also comes with one PCIe Gen 5.0 (12VHPWR) connector to support modern graphics cards.

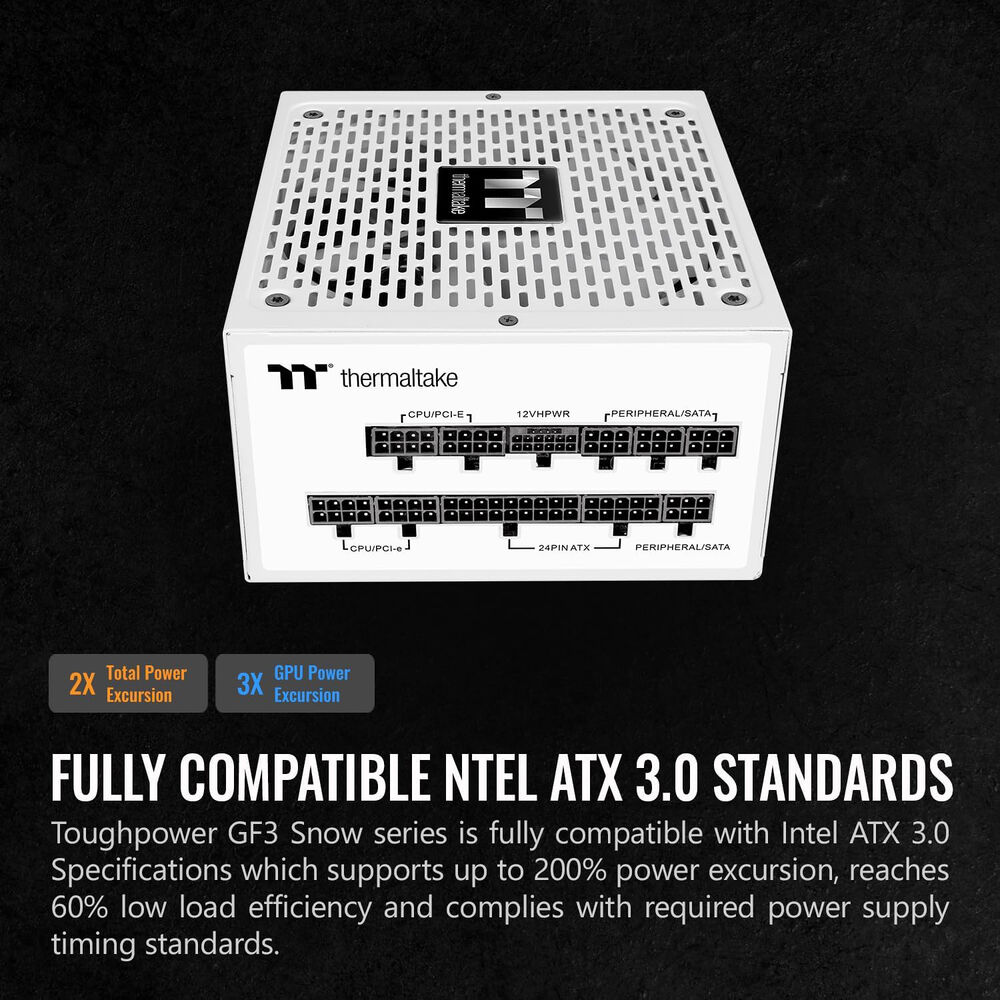

The Toughpower GF3 Snow is fully compatible with Intel ATX 3.0 specifications and it supports up to 200% power excursion, reaches 60% low load efficiency, and complies with required power supply timing standards.

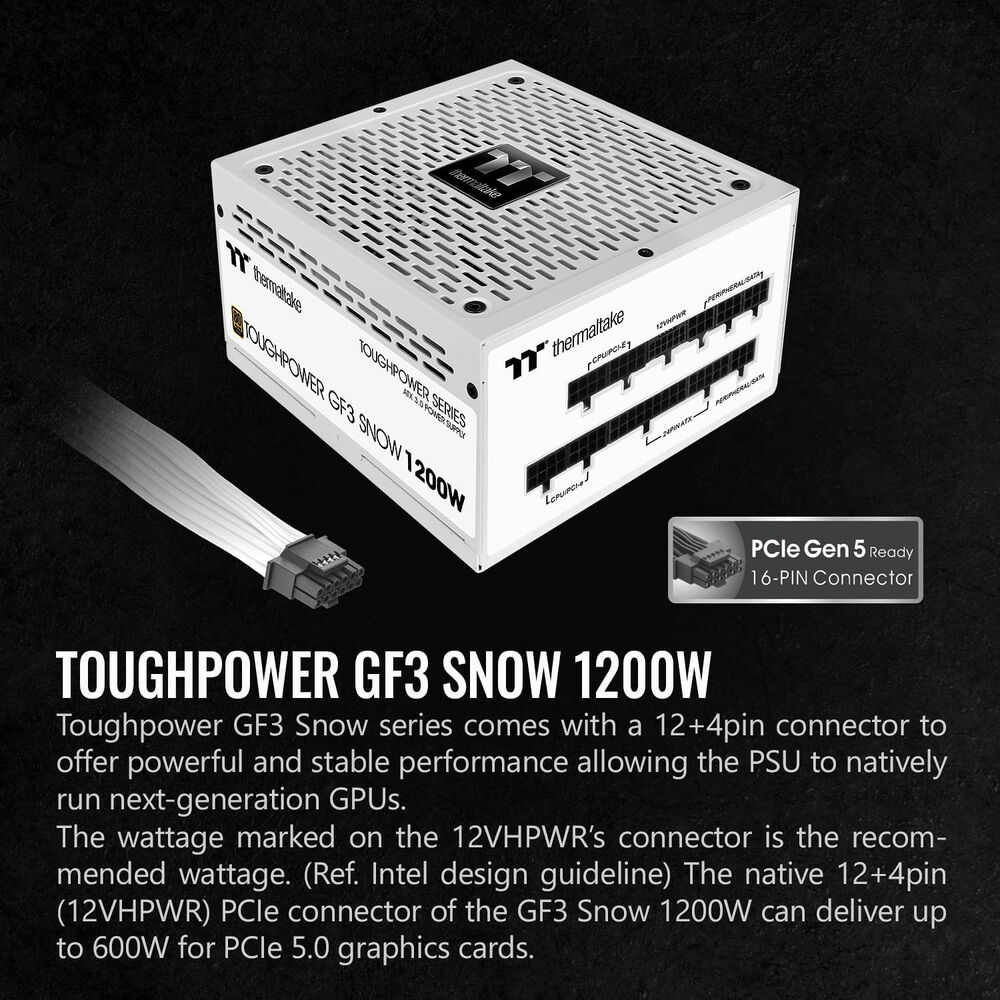

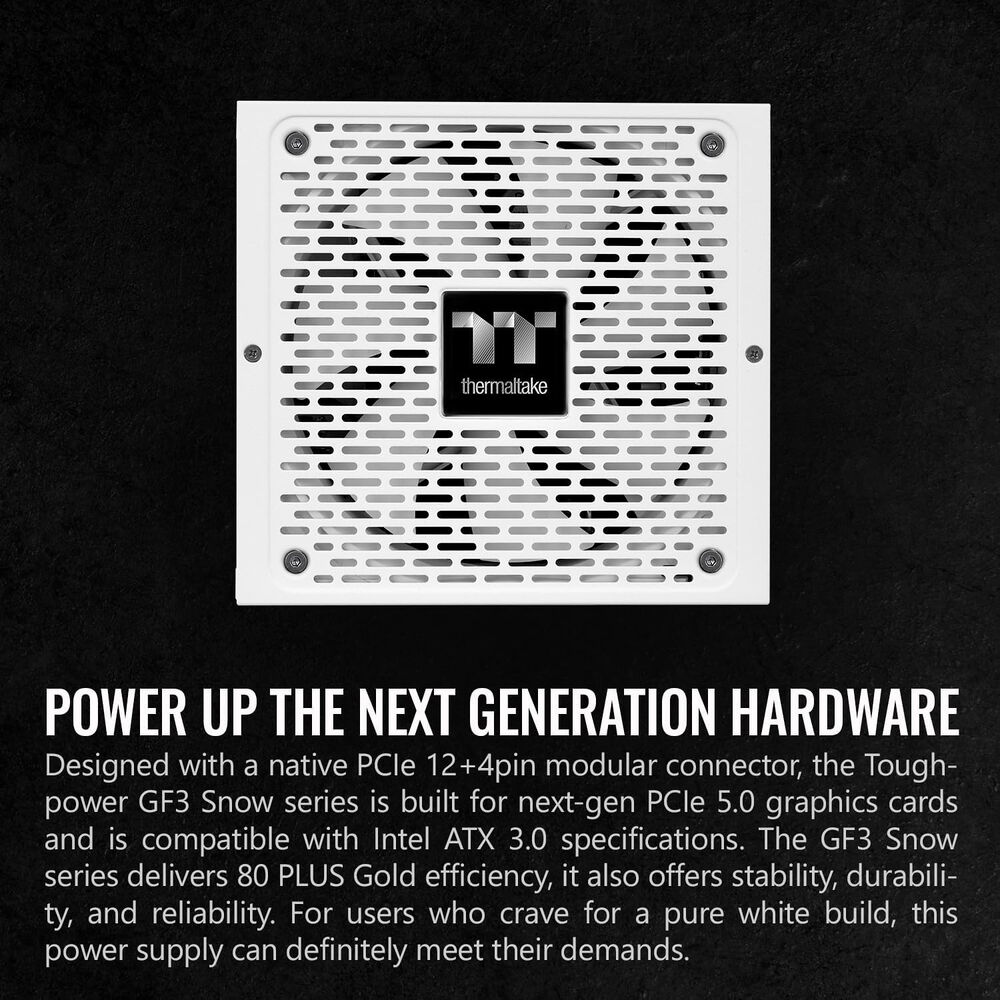

The PSU comes with a native PCIe 12+4 pin modular connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12VHPWR's connector is the recommended Intel wattage. The native PCIe 12+4pin (12VHPWR) connector can deliver up to 600W for PCIe 5.0 graphics cards.

As the power consumption of graphics cards increase, so has their demand for power. The GF3 Snow series is designed to support NVIDIA and AMD graphics cards, and it supports 8-pin PCIe cables for AMD graphics cards and entry-level RTX 40 series graphics cards.

It also comes with one 16-pin connector for RTX 40 series cards that need a PCIe Gen 5.0 connector, ready to supply the graphics cards according to their different ways of connections.

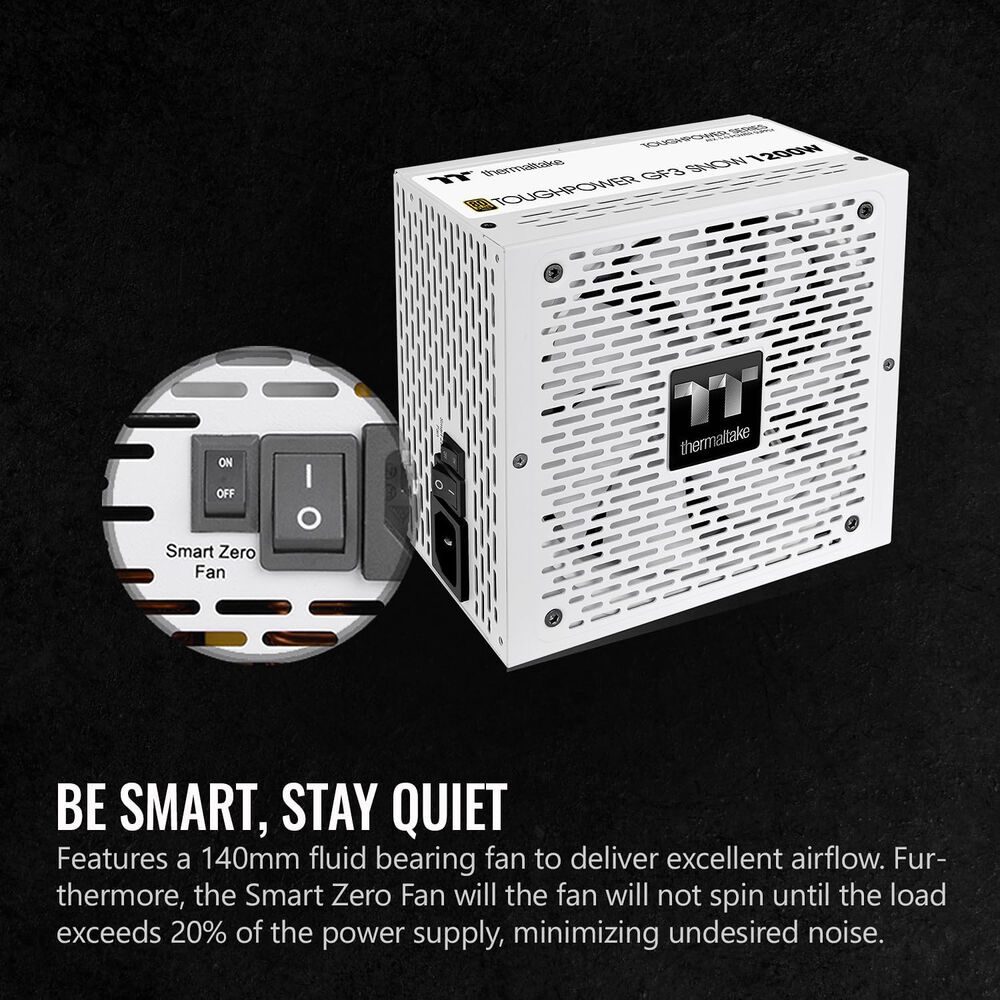

Featuring a 140mm cooling fan optimized for quiet airflow, the PSU is designed to provide low noise levels up to 20% load.

The powerful single +12V rail can properly deliver the power you need for the best compatibility.

The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

All noise ripples are lower than 30mV on +12V, +5V, or +3.3V from 0% to 100% load to ensure a stable operation and allow your performance-critical components to function reliably for longer.

The voltage regulation is tighter than Intel's standard +5%,-7% for major rails and ±10% for -12V, set to no more than ±2% for major rails, providing steady clean power through exceptional voltage stability.

During a power interruption, your computer might shut down or reboot, so the GF3 Snow series will deliver at least 17ms at 100% workload, without system reboot or resetting.

To protect the hardware, the GF3 Snow is built with industry grade protections:

• OCP (Over Current Protection)
• OVP (Over Voltage Protection)
• UVP (Under Voltage Protection)
• OPP (Over Power Protection)
• SCP (Short Circuit Protection)
• OTP (Over Temperature Protection)

Modular low-profile black cables come with sleeve cabling to make installation easy while powering the system at optimal voltages. It features the following connections:

• A main 24-pin connector
• Two 4+4-pin ATX 12V connectors
• Four PCIe 4+4-pin connectors
• Four 6+2-pin connectors
• One PCIe 12+4-pin 600W connector
• Eight SATA 5-pin connectors
• Eight 4-pin peripheral connectors
• One FDD Adapter

The GF3 Snow Gold series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS Gold. It has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.

Thermaltake Toughpower GF3 Specs

Total Connectors	1x 24-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 4x 6+2-Pin PCIe 1x 16-Pin PCIe (12VHPWR) 8x 15-Pin SATA 8x 4-Pin Peripheral / Molex
Cable Design	Modular
Total Wattage	1200 W
Number of +12 V Rails	1
Efficiency Rating	80 PLUS Gold
Form Factor	ATX

Total Connectors	1x 24-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 4x 6+2-Pin PCIe 1x 16-Pin PCIe (12VHPWR) 8x 15-Pin SATA 8x 4-Pin Peripheral / Molex
Cable Design	Modular
PCIe Connector Distances	23.6" / 600 mm
SATA Connector Distances	19.7" / 500 mm 25.6" / 650 mm 31.5" / 800 mm 37.4" / 950 mm
Peripheral Connector Distances	19.7" / 500 mm 25.6" / 650 mm 31.5" / 800 mm 37.4" / 950 mm
ATX Connector Distance	27.6" / 700 mm
EPS Connector Distances	23.6" / 600 mm

Total Wattage	1200 W
Number of +12 V Rails	1
Combined Power for +12 V	1200 W
Max Load for +12 V	100 A
Combined Power for +3.3/+5 V	130 W
Max Load for +3.3 V	20 A
Max Load for +5 V	20 A
Max Power for +5 Vsb	15 W
Max Load for +5 Vsb	3 A
Max Power for -12 V	3.6 W
Max Load for -12 V	0.3 A
Input Power	100 to 240 VAC, 50 / 60 Hz

Efficiency Rating	80 PLUS Gold
Active Power Factor Correction	Yes

Fan Size	140 mm
Bearing Type	Fluid Dynamic Bearings (FDB)

Form Factor	ATX
Compliance	ATX 12 V v3.0
Protection	Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Certifications	BSMI, CCC, CE, EAC, FCC, ICES, TUV, UKCA, cTUVus
Operating Conditions	32 to 104°F / 0 to 40°C at 20 to 85% Humidity
Dimensions	6.3 x 5.9 x 3.4" / 160 x 150 x 86 mm
