Description
Product Overview

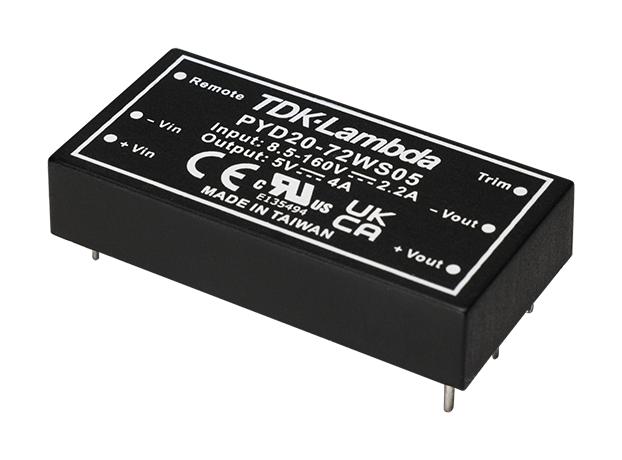

PYD20-72WS05 is a PYD20 series 20W single output DC-DC converter. This single output model can be adjusted -20% to +15% by using the trim terminal. The input to output isolation is 3000VAC and the unit is potted to provide a high resistance to shock and vibration. The converter is certified according to the 62368-1 safety standards and with additional circuits, this is also certified to IEC 62368-1, tested according to the EN 50155 railroad standard for electronic equipment in railroad vehicles. It includes overcurrent, overvoltage, overtemperature protection. Application includes industrial, test, COMM, broadcast, railway.
- Input voltage range from 8.5 to 160V, output voltage is 5V
- Maximum current is 4A, no load input current is 5mA
- Efficiency is 86 / 85% (72 / 110VDC), maximum load capacitance is 6800uF
- 2� x 1� footprint, industry standard package size
- Supports the majority of rail DC input voltages
- Certified to IEC 62368-1, tested according to EN 50155, easier system compliance
- Potted plastic case, high resistance to shock and vibration, positive logic, remote on/off
- Size (L x W x H) is 50.8 x 25.4 x 10.2mm
- 3 years warranty, plastic case material
- Operating temperature range from -40 to +105°C
Product details
Other details
| Brand | TDK-LAMBDA |
| Part Number | PYD20-72WS05 |
| Quantity | Each |
| Technical Data Sheet EN |  |
