Description
Product Overview

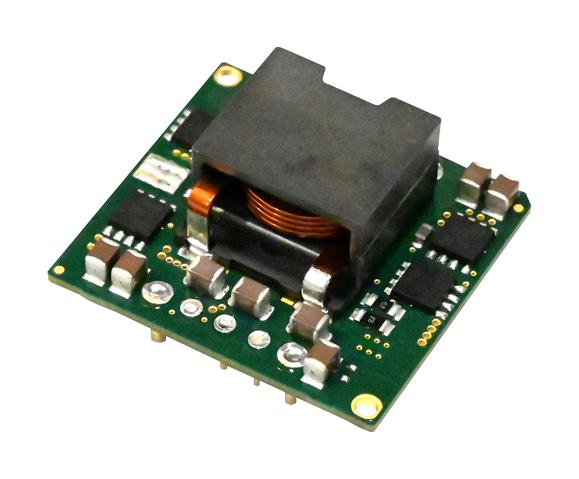

I7C2W020A120V-003-R is an i7C series non-isolated step-up / step-down converter ideal for generating additional DC output voltage rails up to 300W. The highly efficient i7C series accepts a very wide DC input and has a wide output adjustment range.
- Input voltage range from 9 to 36VDC
- Output voltage is adjustable from 8 to 24VDC
- Maximum current is 20A
- Negative logic on/off, 1/16th brick pin-out
- Power good signal, switching frequency synchronization and output current monitoring option
- Low component count with minimal external components
- High power density, less board area needed
- Low airflow with minimal derating requirements
- Longer battery life / less power consumed
- 3 years warranty
Product details
Other details
| Brand | TDK-LAMBDA |
| Part Number | I7C2W020A120V-003-R |
| Quantity | Each |
| Technical Data Sheet EN |  |
