Description
Product Overview

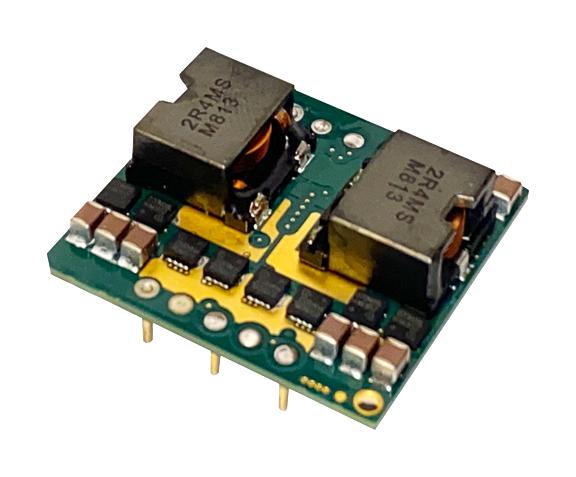

I7A24045A033V-000-R is an i7A series 750W non-isolated DC to DC step-down converter. The highly efficient i7A series has low ripple, excellent dynamic response under sudden load changes, accepts a wide DC input with a wide output adjustment range.
- Input voltage range from 18 to 32VDC
- Output voltage is adjustable from 3.3 to 18VDC
- Maximum current is 45A
- Positive logic on-off, 1/16th brick footprint
- Low component count with minimal external components
- High power density, less board area needed
- Minimal derating requirements in low airflow environments
- Longer battery life / less power consumed
- 34 x 36.8 x 11.5mm size
- 3 years warranty
Product details
Other details
| Brand | TDK-LAMBDA |
| Part Number | I7A24045A033V-000-R |
| Quantity | Each |
| Technical Data Sheet EN |  |
