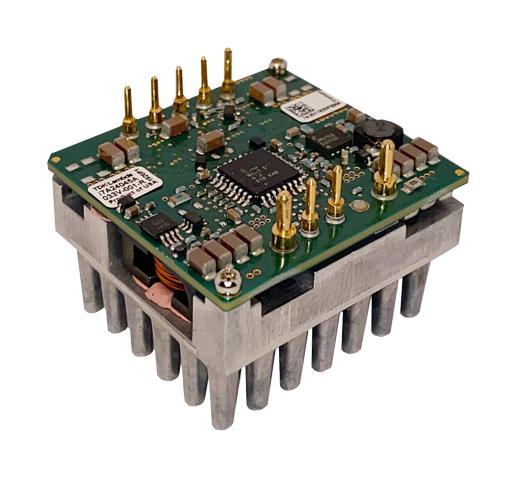

TDK-LAMBDA I7A12060A008V-0F3-R Non Isolated POL DC/DC Converter, ITE, Sixteenth Brick, 400 W, 800 mV, 8 V, 60 A

I7A12060A008V-0F3-R is an i7A series non-isolated DC-DC step-down converter. It is ideal for creating additional high current/high power output voltage rails from a single output AC-DC or DC-DC power supply. The highly efficient i7A series has low ripple, excellent dynamic response under sudden load changes, accepts a wide DC input with a wide output adjustment range and optional current limit (OCP) adjust. The i7A series expands upon TDK-Lambda�s existing 100 to 250W rated i3A / i6A series and reduces the need to parallel modules.

• 9V to 18V input voltage range, 0.8V to 8V output voltage range
• 60A maximum output current, 400W maximum output power
• Negative remote on/off logic, adjustable (OCP) current limit, integrated heatsink
• High power density, less board area needed, longer battery life, less power consumed
• One part supports multiple system voltages
• Can operate from different DC source voltages including batteries
• Low component count with minimal external components, low cost
• Minimal derating requirements in low airflow environments, easy to cool in end system
• 3 year warranty, -40 to 125°C operating temperature range
• Size (LxWxH) is 34 x 36.8 x 24.9mm
