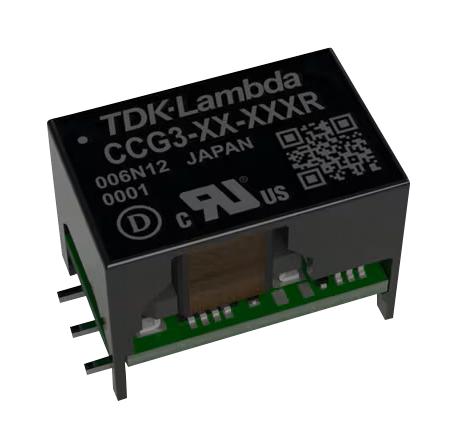

TDK-LAMBDA CCG3-48-12SR Isolated Surface Mount DC/DC Converter, ITE, Surface Mount DIP, 4:1, 3 W, 1 Output, 12 V

CCG3-48-12SR is a space saving CCG3 series isolated DC-DC converter. In addition to battery powered equipment, applications include process control, data communications, telecommunications and test or measurement related products. CCG3 converters features a plastic case and measure 15.7mm (length) x 10.4mm (width) x 11.5mm (height). On the highly automated production line utilising X-ray inspection, no encapsulation is used in order to avoid quality risks associated with silicone potting compounds during the customer reflow soldering process.

• Wide 4:1 input range, 18V to 76V input voltage range, single output
• 12V output voltage, 0.25A output current, 3W max power, 82% efficiency (100% load, nominal input)
• IEC/UL/CSA/EN62368-1 certified, easier system compliance
• Reduced derating at high ambient temperatures, more useable power
• No silicone potting, reduced quality risk during surface mount reflow process
• Space saving package sizes, less board area needed, -40 to +100°C ambient operating temperature
• Surface mounting, switching frequency of 400KHz (fixed)
• Overcurrent, overvoltage and overtemperature protection, 5 years warranty
