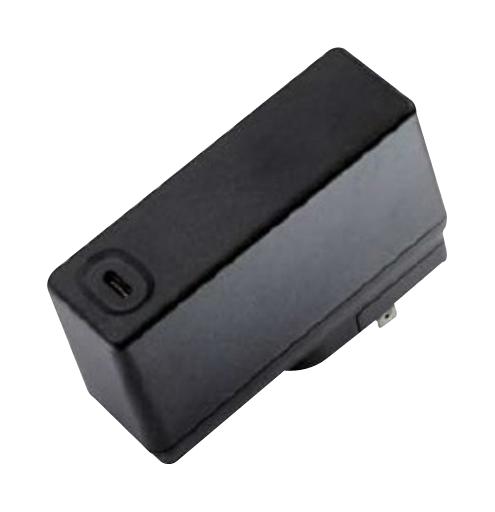

SLE60SPD96B01 is a SLE60PD series 60W single output medical/industrial grade external plug-in adaptor. It includes overload, overvoltage, short circuit protection. It is approved by CB medical: IEC60601-1, ANSI/AAMI ES60601-1, ITE:IEC62638-1, UL62638-1, UL-medical: CAN/CSA C22.2 NO. 60601-1 ITE: CAN/CSA C22.2 NO. 62638-1, TUV-medical: EN60601-1 ITE: EN62638-1.
- USB-C with power delivery output, medical and ITE safety approvals
- Suitable for medical equipment up to class BF
- Low leakage current <=100µA, DOE efficiency level VI
- CoC V5 Tier 2(2016), <=0.15W standby power
- 5000m operating altitude, AC inlet IEC60320 C8 (c. II), interchangeable plugs (c.II)
- Input voltage frequency range from 90VAC to 264VAC, 47Hz to 63Hz
- 5, 9, 12, 15, 20V output voltage, 3A output current
- 4000VAC input to output (2 x MOPP) isolation safety rating
- Operating temperature range from 0°C to 40°C
- Input configuration is Class II interchangeable blades (sold separately)
Product details
| Power Supply Applications:
ITE, Industrial & Medical
|
| No. of Outputs:
5 Output
|
| Output Power Max:
60W
|
| Output Voltage - Output 1:
12V
|
| Output Current - Output 1:
3A
|
| Output Voltage - Output 2:
15V
|
| Output Current - Output 2:
3A
|
| Output Connector:
USB Type C
|
| Output Voltage - Output 3:
20V
|
| Output Current - Output 3:
3A
|
| Power Supply Output Type:
Fixed
|
| Input Voltage VAC:
90V AC to 264V AC
|
| Product Range:
SLE60 Series
|
| Plug Type:
Mains Plug Sold Separately
|
Other details
| Brand |
SL POWER |
| Part Number |
SLE60SPD96B01 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
