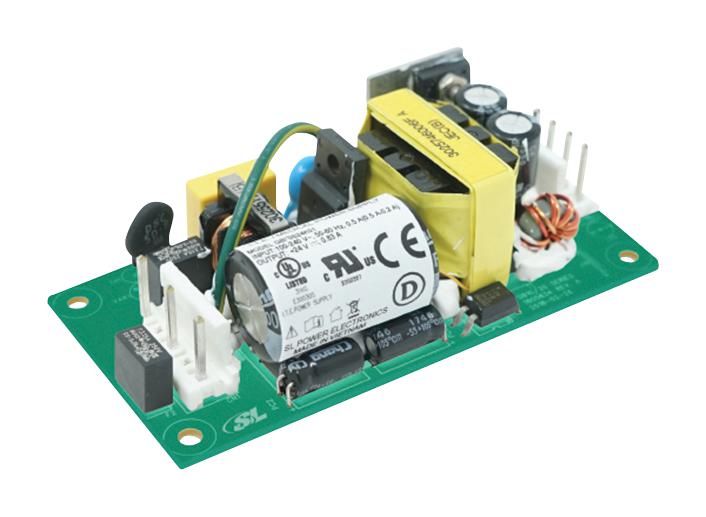

GB10S12K01 is a GB10 series single output medical/industrial grade power supply. The series is designed to offer superior performance and minimize the effort required for system integration across many markets and application including test & measurement, medical, lighting, and industrial. It is approved to medical and industrial safety standards: EN/IEC/UL60601-1, 3rd edition (with 2 MOPP isolation), and EN/IEC/UL62368-1. Approved to CSA/EN/IEC/UL62368-1 and meets heavy industrial and IEC60601-1-2 4th edition levels of EMC. Meets class B radiated and conducted EMI with margin.
- 12V output voltage, 1A rated current, 12W output power
- Open frame power supply with 90VAC to 264VAC universal input
- Overtemperature, overload, short circuit and overvoltage protection
- Approved to CSA/EN/IEC/UL60601-1 3rd edition
- E-cap life of > 10 years, >1,000,000 hours MTBF, 3 years warranty
- <0.1W no load input power, typical efficiency is >88%
- Input to output isolation is 4000VAC (2 MOPP)
- Operating temperature range from -25°C to +70°C
- Dimension is 40mm x 82mm x 26.5mm
Product details
| Power Supply Applications:
ITE, Industrial & Medical
|
| No. of Outputs:
1 Output
|
| Power Rating (Forced Cooling):
-
|
| Power Rating (Convection Cooling):
12W
|
| Input Voltage VAC:
90V AC to 264V AC
|
| Power Supply Output Type:
Fixed
|
| Output Voltage - Output 1:
12V
|
| Output Current - Output 1:
1A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Voltage - Output 3:
-
|
| Output Current - Output 3:
-
|
| Output Voltage - Output 4:
-
|
| Output Current - Output 4:
-
|
| Product Range:
GB10 Series
|
Other details
| Brand |
SL POWER |
| Part Number |
GB10S12K01 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
