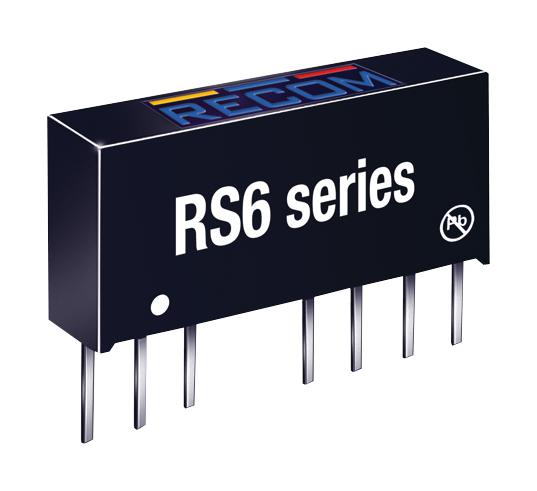

The RS6-2405S from Recom Power is a RS6 series regulated DC to DC converter in 8 pin SIP package. It offers very high power density (2.7W/cm³), wide input voltage range and an industrial operating temperature range of -40°C to +75°C without derating. High efficiency, tight regulation, 2KVDC isolation and remote on/off are just some of the characteristics of this advanced SIP8 6W converter which is ideal for high density power supply designs in demanding industrial applications.
- Nominal input voltage is 24VDC
- Output voltage is 5VDC
- Output current is 1200mA
- Typical efficiency is 87%
- Maximum capacitive load is 3300µF
- Isolation voltage is 1.6KVDC/1minute
- EN60950 and IEC/EN62368-1 certified
- Short circuit protection, over load protection
- Internal operating frequency is 200KHz, dimension is 21.8mm x 9.2mm x 11.1mm
Applications
Industrial
Product details
| No. of Outputs |
1 Output |
| Output Power Max |
6W |
| Output Voltage - Output 1 |
5V |
| Output Current - Output 1 |
1.2A |
| Output Voltage - Output 2 |
- |
| Output Current - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Current - Output 3 |
- |
| Product Range |
RS6 Series |
| Input Voltage DC Min |
18V |
| Input Voltage DC Max |
36V |
| DC / DC Converter Output Type |
Fixed, Adjustable |
| DC / DC Converter Type |
SIP |
| DC / DC Converter Mounting |
Through Hole |
| Width |
9.2mm |
| Height |
11.1mm |
| Depth |
21.8mm |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
RECOM POWER |
| Part Number |
RS6-2405S |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
