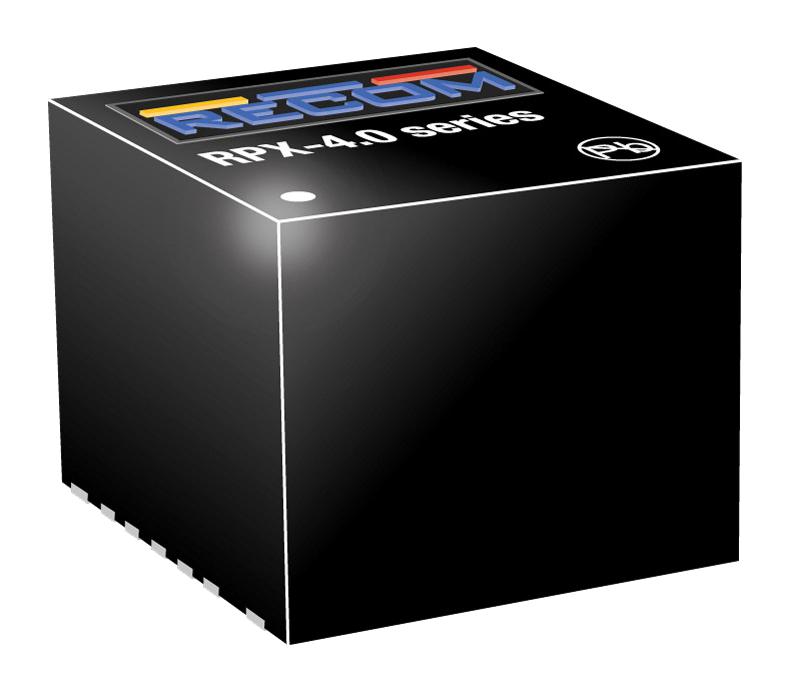

RPX-4.0-CT is a RPX-4.0 series buck regulator power module with integrated shielded inductor in a compact 5mm x 5.5mm x 4.1mm thermally-enhanced QFN package. The output voltage can be set with two resistors in the range from 1 up to 7VDC. The output current is up to 4A and is fully protected against continuous short-circuits, output overcurrent, or over-temperature faults, making the device particularly suitable for industrial automation, test and measurement, portable devices, and high density or weight-sensitive applications.
- 3.8 - 36VDC input voltage, 4A output current
- Programmable output voltage: 1 to 7V
- Ultra-high power density: 5.0 x 5.5mm QFN footprint
- Enable, power good, soft start
- Flip-chip technology for improved thermal behaviour
- 3 year warranty
Product details
| Power Supply Applications:
-
|
| Output Power Max:
28W
|
| Output Voltage Min:
1VDC
|
| Output Voltage Max:
7VDC
|
| Output Current Max:
4A
|
| DC / DC Converter Output Type:
Adjustable
|
| DC / DC Converter Type:
Module
|
| Input Voltage DC Min:
3.8VDC
|
| Input Voltage DC Max:
36VDC
|
| Height:
4.1mm
|
| Depth:
5.5mm
|
| Width:
5mm
|
| Product Range:
RPX Series
|
Other details
| Brand |
RECOM POWER |
| Part Number |
RPX-4.0-CT |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
