Description

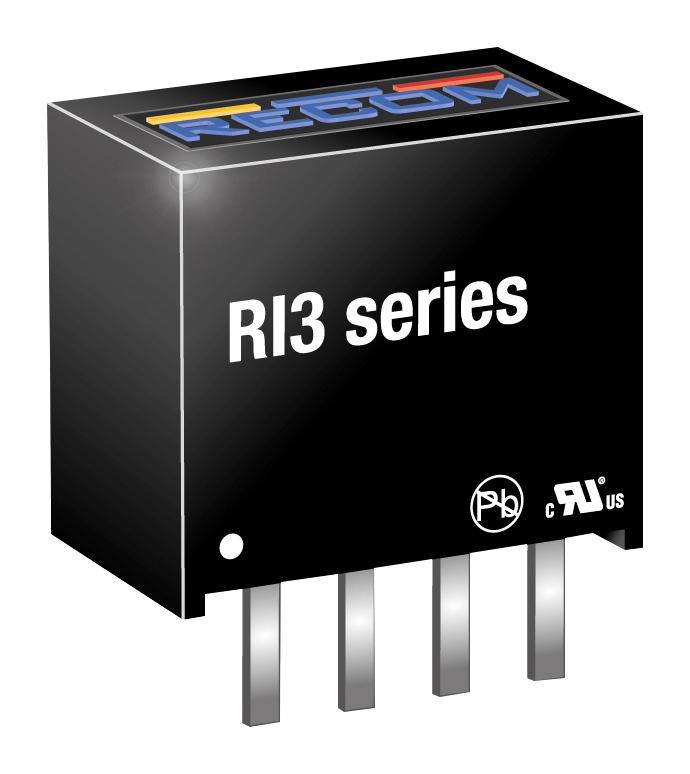

The RI3-0505S from Recom Power is a RI3 series unregulated DC to DC converter in 4 pin SIP package. It has been specifically designed for applications where board space is at a premium since this 3W converter has the same foot print as the RI series 2W converter. With efficiencies up to 90%, the full output power is available over the operating temperature range -40°C to +85°C and the converter can be used in ambient temperatures of up to 100°C with derating. This converter suitable for many industrial applications.
- Input voltage is 5VDC
- Output voltage is 5VDC
- Output current is 600mA
- Efficiency typical at full load is 83%
- Maximum capacitive load is 2200µF
- 1KVDC isolation voltage
- Operating temperature range from -40°C to +100°C with derating
- EN55022 certified
- Output ripple and noise is 100mVp-p
- Dimension is 11.5mm x 10.2mm x 7.6mm
Industrial
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | RECOM POWER |
| Part Number | RI3-0505S |
| Quantity | Each |
| Technical Data Sheet EN |  |
