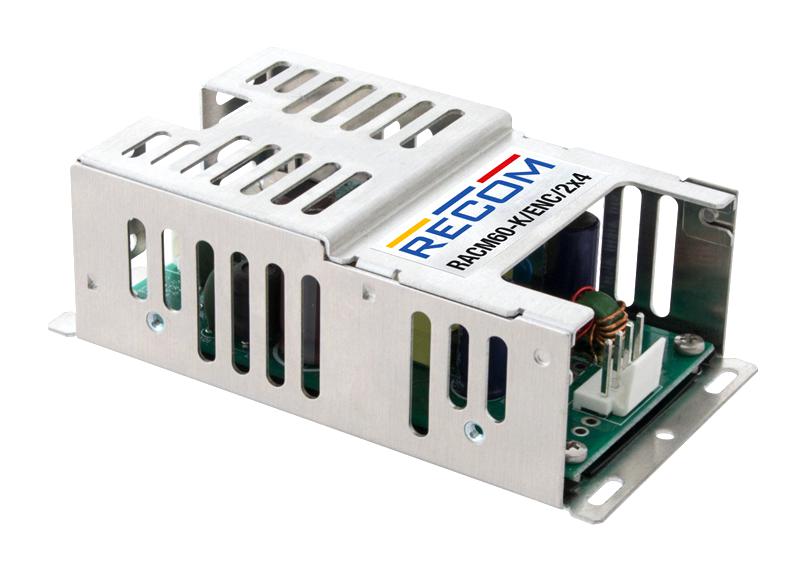

RACM60-12SK/ENC/2X4 is a RACM60-K series multi-purpose, industrial + household + medical grade AC/DC converter. It delivers 60W of output power from -40°C to +55°C with natural air convection only, and up to +85°C with derating or forced cooling. The RACM60-K has ANSI/AAMI/IEC 60601-1 medical safety and EN 60601-1-2 medical EMC certifications and offers 4kVAC/1 min isolation, 2MOPP and designed to meet B and BF requirements. It is additionally certified to IEC/EN62368-1(CB Report) and IEC61558-1/-2-16 for industrial applications and IEC/EN60335-1 for household appliances. The robust built-in Class B EMC filter has sufficient margin to allow both Installation Class II or Class I PELV with grounded output.
- Input voltage range from 80-264/ 80-305VAC
- Output voltage of 12VDC
- Over voltage category OVC III
- 4000/5000m (medical/ITE) operating altitude
- 3 year warranty
- 2"x4" version with metal enclosure and standard connectors
Other details
| Brand |
RECOM POWER |
| Part Number |
RACM60-12SK/ENC/2X4 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
