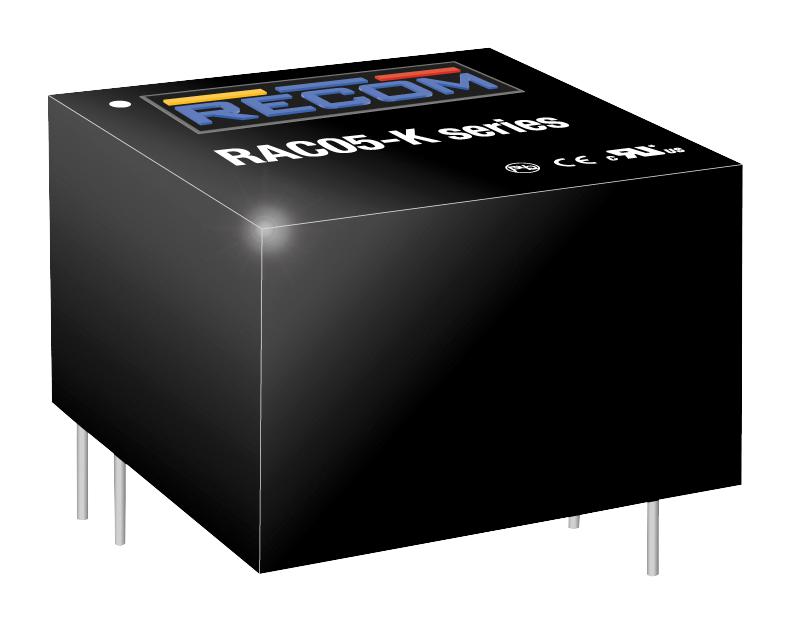

The RAC05-05SK from Recom Power is a RAC05-K series 5W 1" x 1" single output high power density AC to DC converter. The RAC05-K series comprises ultra-compact AC/DC power supply modules in lightweight fully encapsulated plastic casing for PCB mount. Beside the safety approvals for industrial and IT solutions, they are also certified to UL60950-1 and UL62368-1.
- Input voltage range from 85VAC to 264VAC
- Output voltage of 5VDC
- Output current is 1000mA
- Typical efficiency is 80%
- Maximum capacitive load is 6000µF
- No load power consumption is 75mW
- Input frequency range from 47Hz to 63Hz, internal EMC class B filter
- UL/IEC/EN60950-1 certified
- Operating temperature range from -25°C to +70°C, electrical protection
- Dimension is 25.4mm x 25.4mm x 16.5mm
Applications
Power Management, Industrial
Product details
| No. of Outputs |
1 Output |
| Output Power Max |
5W |
| Output Voltage - Output 1 |
5V |
| Output Current - Output 1 |
1A |
| Output Voltage - Output 2 |
- |
| Output Current - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Current - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Input Voltage AC Min |
85V |
| Input Voltage AC Max |
264V |
| Width |
25.4mm |
| Height |
16.5mm |
| Depth |
25.4mm |
| Product Range |
RAC05-K Series |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
RECOM POWER |
| Part Number |
RAC05-05SK |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
