Description

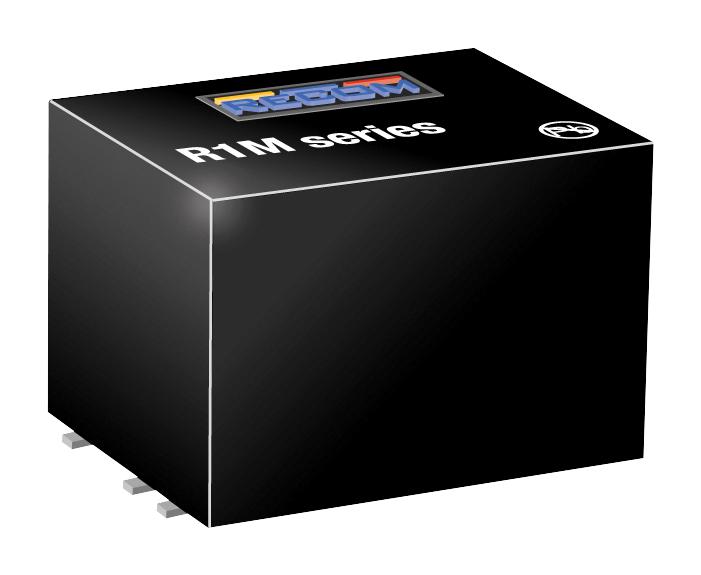

R1M-1205S/SMD is a R1M series isolated 1W DC/DC converter in a compact SMD package available with 4:1 input range.
- Input voltage range from 4.5 to 18VDC, output voltage of 5VDC
- Output current is 200mA, efficiency is 78-79%, maximum load capacitance is 820µF
- Isolation is 1.6KVDC/1min
- Operating temperature is from -40°C up to +90°C without derating
- Regulated output
- Continuous short circuit protected
- Class A and Class B EMC conformity requires only a few external components
- Output ripple and noise is 30mVp-p(20MHz bandwidth)
- Dimension is 14.2 x 9.1 x 10.2mm
- 3 year warranty
Other details
| Brand | RECOM POWER |
| Part Number | R1M-1205S/SMD |
| Quantity | Each |
| Technical Data Sheet EN |  |
