Description

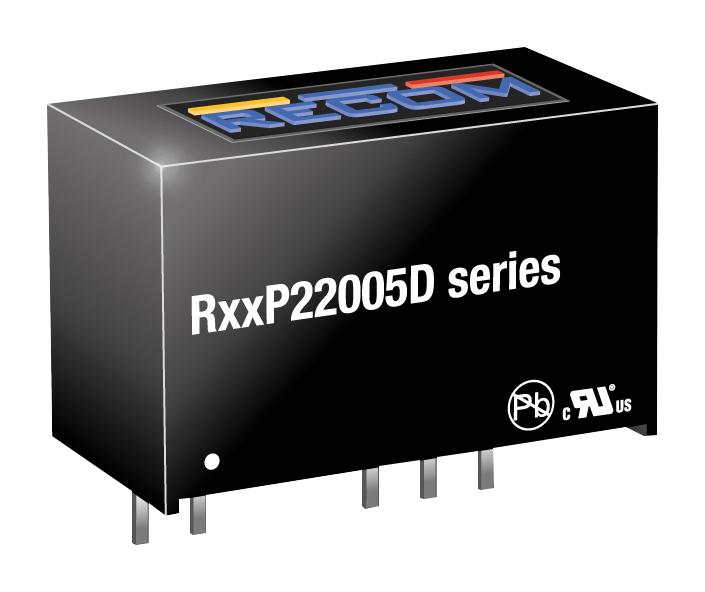

The R12P22005D from Recom Power is a 2W DC to DC converter in 7 pin SIP package. This DC to DC converter is especially designed for SiC MOSFET drivers and it comes with two asymmetric outputs. A special feature of this converter is output power sharing, it can be used with equal power (asymmetrical current) or equal current (asymmetrical power) loads. It offers high 5.2KVDC/1minute isolation and operates in temperature which meets harsh environmental requirements.
- 12VDC input voltage
- Output voltage is 20VDC/-5VDC
- Output current is 50mA/-200mA and ±80mA
- Typical efficiency of 82%
- Maximum capacitive load of 47µF/680µF
- Operating temperature range from -40°C to +95°C
- Maximum isolation capacitance is 10pF
- Minimum isolation resistance is 15Gohm
- UL60950-1, 1st ed, 2007 UL & CSA C22.2 no. 60950-1-03, 2nd ed, 2006 safety certified (E358085-A8)
- IEC/EN60950-1, 2nd Edition, 2013 IEC/EN safety certified (LVD1602031- file number)
Industrial, Power Management
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | RECOM POWER |
| Part Number | R12P22005D |
| Quantity | Each |
| Technical Data Sheet EN |  |
