| ₹ 40318.1 includes GST and import duties. | |
| B2B customers can avail ₹ 6148.51 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

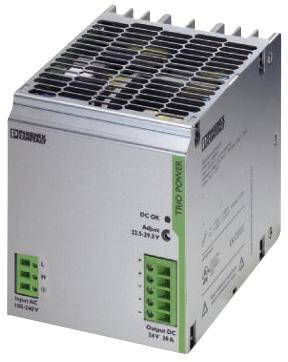

The TRIO-PS/1AC/24DC/20 is a 1-phase DIN-rail mount primary switched Power Supply with basic functions. It is particularly suited for use in series production in mechanical engineering. The high MTBF of 500000-hour stands for high supply reliability. The device can be connected in parallel to increase the capacity and redundancy. The clear LED signalling and the device connection with double terminal block for plus and minus for fast potential distribution are further advantages of this device series. A third terminal block for minus simplifies the grounding on the secondary side. All power supply unit is idle proof and short circuit proof and provide a regulated and settable output voltage of 22.5 to 29.5VDC.
- Reliable power supply unit even at high ambient temperatures
- No load and short circuiting resistance
- High dielectric strength
- <1s Typical response time
- 10A Fuse (slow-blow, internal)
- 16A Recommended backup fuse for mains protection (characteristic B)
- <3.5mA Discharge current to PE
- 46W Maximum power loss nominal load
- 4W Maximum power dissipation idling
- >91% Efficiency
- IP20 Protection rating
Power Management
Other details
| Brand | PHOENIX CONTACT |
| Part Number | TRIO-PS/1AC/24DC/20 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 39511.74 |
| 3-5 | ₹ 39108.56 |
| 5-10 | ₹ 38302.2 |
| 10+ | ₹ 37495.83 |
Bulk discount will be automatically applied during checkout based on quantity.
