Description

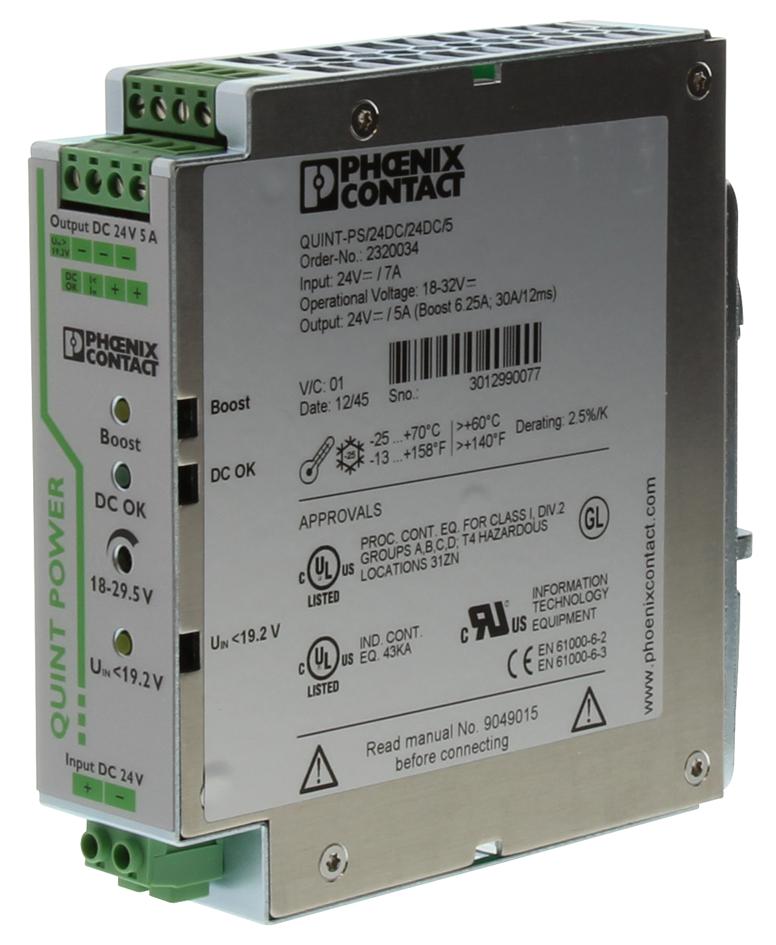

The QUINT-PS 24DC/24DC/5 is a primary-switched QUNIT DC/DC Converter for DIN rail mounting with SFB (Selective Fuse Breaking) technology. DC/DC converter alter the voltage level, regenerate the voltage at the end of long cables or enable the creation of independent supply systems by means of electrical isolation. QUINT DC/DC converter magnetically and therefore quickly trip circuit breakers with six times the nominal current, for selective and therefore cost-effective system protection. The high level of system availability is additionally ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.
- Difficult loads with static POWER BOOST power reserve with up to 125% nominal current permanently
- Wide-range Voltage Input
- Galvanic Isolation
- Reverse Polarity Protection
- Preventive Function Monitoring Indicates Critical Operating States before Errors Occur
- Fast Tripping of Standard Circuit Breakers with Dynamic
- Constant Output Voltage Regenerated Even at the End of Long Cables
- SFB Technology Power Reserve
- High MTBF > 890,000h (40°C)
Industrial, Consumer Electronics
Other details
| Brand | PHOENIX CONTACT |
| Part Number | QUINT-PS 24DC/24DC/5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
