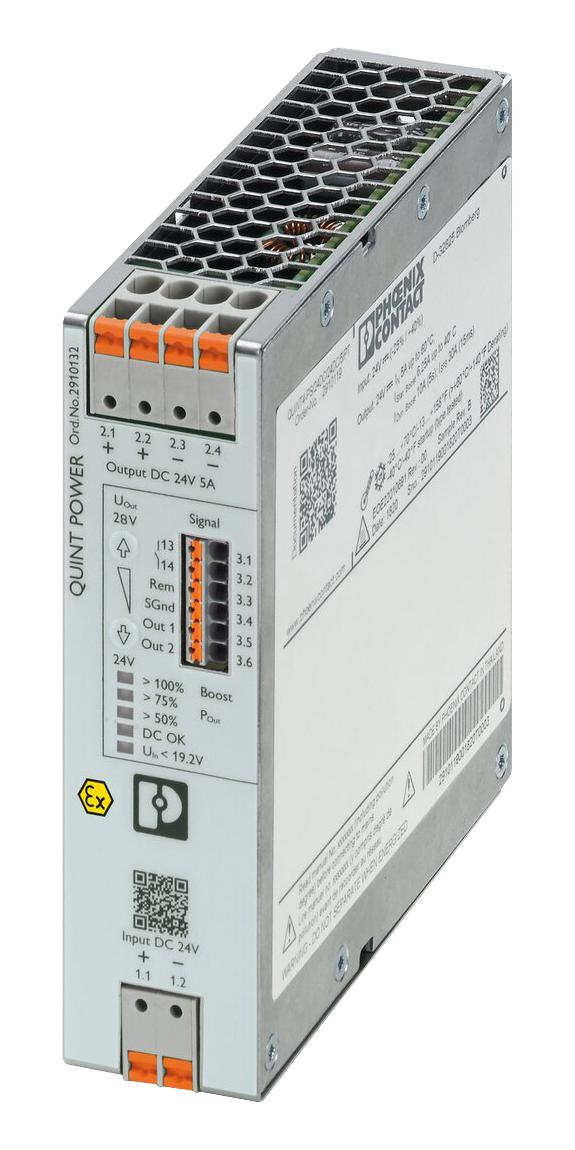

2910132 is a QUINT POWER DC/DC converter with SFB(Selective Fuse Breaking) technology. It ensures that standard LS switches are selectively tripped so that loads connected in parallel can continue to operate without interruption.
- Input: 24VDC , output: 24VDC/5A
- DIN rail mounting
- Power reserves for easy system extension through static boost, dynamic boost to start high loads
- Preventive function monitoring reports critical operating states before faults occur
- High efficiency and long service life, with low power dissipation and low heating
- Push-in connection, with protective coating
- Wide temperature range from -25°C to +70°C
Product details
| Power Supply Applications:
Laboratory Equipment
|
| Input Ratio:
-
|
| Output Power Max:
120W
|
| No. of Outputs:
1 Output
|
| Output Voltage - Output 1:
24V
|
| Output Current - Output 1:
5A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Regulation:
-
|
| Isolation Voltage:
-
|
| DC / DC Converter Output Type:
Fixed, Adjustable
|
| Input Voltage DC Nom:
24V
|
| Width:
36mm
|
| Height:
130mm
|
| Depth:
125mm
|
| Input Voltage DC Min:
18V
|
| Input Voltage DC Max:
32V
|
| Product Range:
QUINT POWER Series
|
Other details
| Brand |
PHOENIX CONTACT |
| Part Number |
2910132 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
