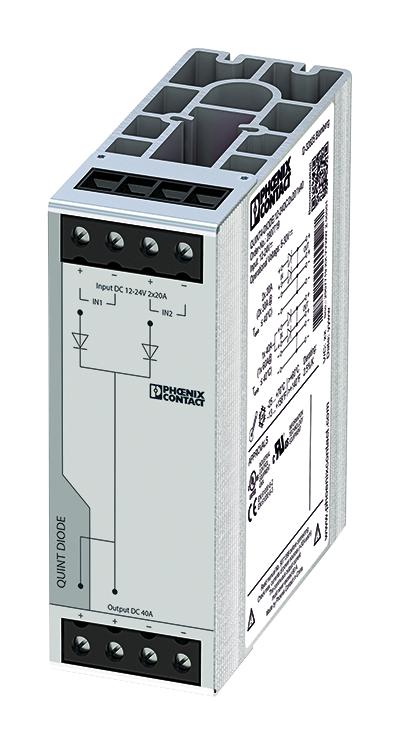

QUINT4-DIODE/12- 24DC/2X20/1X40 is a redundancy module for uniform redundancy up to the consumer. A safe redundant system is the result of the parallel connection of two power supply units which are decoupled from one another. To further increase system availability, QUINT DIODE provides the solution decoupling with diode. Approved by UL/C-UL listed UL 508, UL/C-UL, UL 60950-1, UL ANSI/ISA-12.12.01 class I, division 2, groups A, B, C, D (hazardous location).
- Input voltage is 12VDC to 24VDC, output voltage range from 12VDC to 24VDC
- Nominal output current is 40A (increasing power), 20A (redundancy), efficiency is > 97%
- Flexible, rugged design, consistent redundancy up to the load
- Screw input and output connection
- Degree of protection is IP20
- Aluminium / stainless steel housing material
- Operating ambient temperature -40°C to 70°C (> 60 °C derating: 2.5%/K
- Dimension is (W x H x D) 50 x 130 x 125mm
Product details
| For Use With:
Phoenix Contact QUINT Series Uninterruptible Power Supplies
|
| Accessory Type:
Diode Module
|
| Product Range:
QUINT DIODE Series
|
Other details
| Brand |
PHOENIX CONTACT |
| Part Number |
2907719 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
