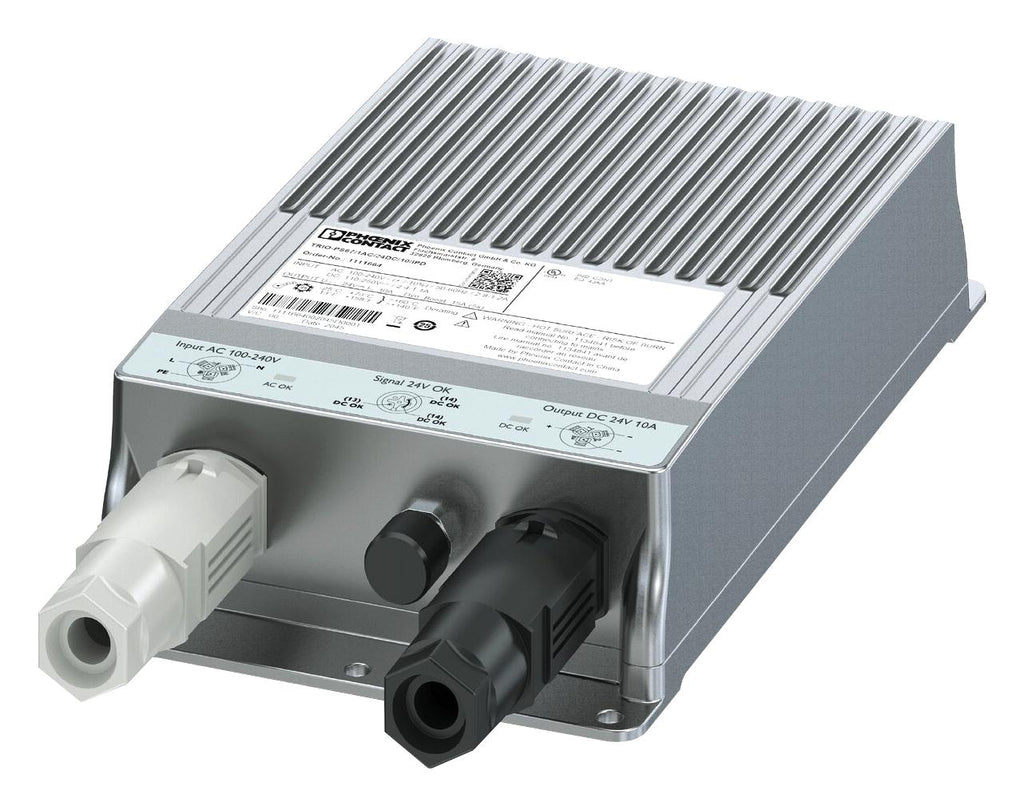

1111664 is a TRIO POWER primary-switched power supply in IP67 die-cast housing ideally suited for distributed supply in the field. The weather resistant aluminium housing protects the devices against dust and water. This enables the power supplies to ensure high system availability even in harsh ambient condition.
- Input: 1-phase, output: 24VDC/10A
- Direct installation at load in the field reduces cable lengths & saves space in the control cabinet
- Reliable start-up of difficult loads with dynamic boost
- Improved diagnostic options in the field with DC OK LED and AC OK LED
- IPD panel feed-through with Push-in spring connection
Product details
| Power Supply Applications:
Laboratory Equipment
|
| No. of Outputs:
1 Output
|
| Output Power Max:
240W
|
| Output Voltage - Output 1:
24VDC
|
| Output Current - Output 1:
10A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Voltage - Output 3:
-
|
| Output Current - Output 3:
-
|
| Output Voltage - Output 4:
-
|
| Output Current - Output 4:
-
|
| Input Voltage VAC:
100V AC to 240V AC
|
| Power Supply Output Type:
Fixed
|
| Product Range:
TRIO POWER Series
|
Other details
| Brand |
PHOENIX CONTACT |
| Part Number |
1111664 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
