Description

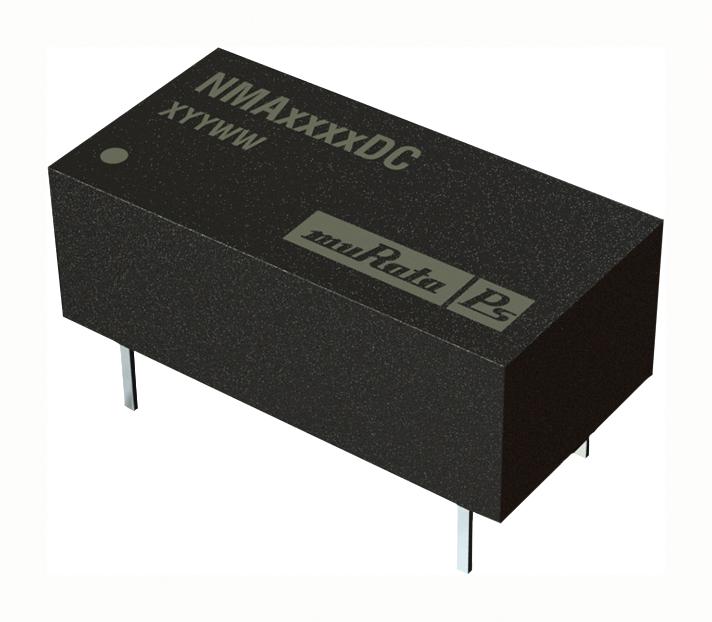

The NMA0515DC is a 2-output board-mount isolated DC to DC Converter ideally suited for providing dual rail supplies on primarily digital boards with the added benefit of galvanic isolation to reduce switching noise. The NMA series 1W DC/DC converter is the standard building block for on-board distributed power systems. All of the rated power may be drawn from a single pin provided the total load does not exceed 1 watt.
- Efficiency up to 80%
- Power density up to 0.85W/cm³
- No heatsink required
- Footprint from 1.17cm²
- Industry standard pinout
- Power sharing on output
- 1kVDC Isolation
- Internal SMD construction
- Fully encapsulated with toroidal magnetics
- No external components required
- MTTF up to 3.1 million hours
- No electrolytic or tantalum capacitors
Applications
Power Management
Product details
| Power Supply Applications: ITE |
| Input Ratio: 1:1 |
| Output Power Max: 1W |
| No. of Outputs: 2 Output |
| Output Voltage - Output 1: 15V |
| Output Current - Output 1: 33mA |
| Output Voltage - Output 2: -15V |
| Output Current - Output 2: 33mA |
| Output Regulation: Unregulated |
| Isolation Voltage: 1kV |
| DC / DC Converter Type: DIP |
| Input Voltage DC Nom: 5V |
| DC / DC Converter Output Type: Fixed |
| Width: 9.8mm |
| Height: 6.8mm |
| Depth: 19.5mm |
| Input Voltage DC Min: 4.5V |
| Input Voltage DC Max: 5.5V |
| Product Range: NMA Series |
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | NMA0515DC |
| Quantity | Each |
| Technical Data Sheet EN |  |
