Description
Product Overview

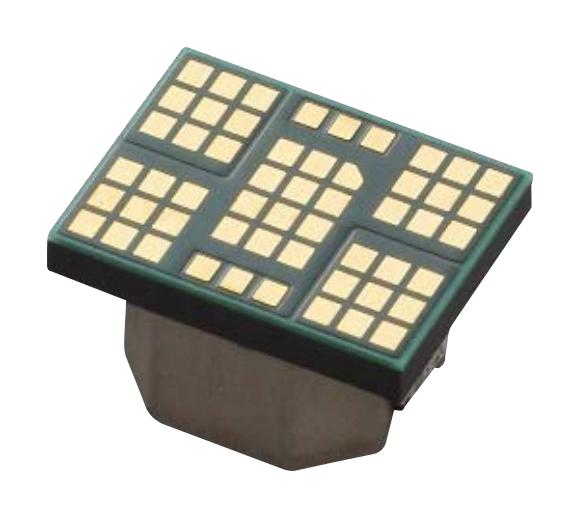

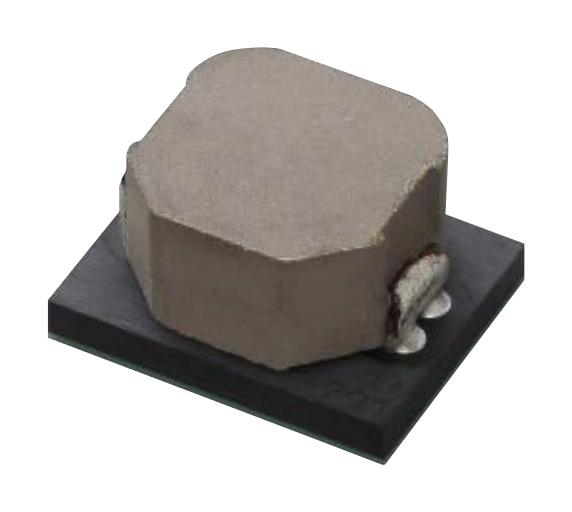

MYSGK4R030ERSR is an SGK series, miniature MonoBK� called �monoblock�, a non-isolated point-of-load (PoL) DC-DC power converter for embedded applications. This converter has an input voltage range from 4.5V to 15.0V and a maximum output current of 30A. Based on a fixed frequency synchronous buck converter switching topology, this high power conversion efficient PoL module features a settable output voltage of 0.7V to 4.0V, On/off control, and power good signal output. It also includes under-voltage lockout (UVLO), output short circuit protection, and over-current protection. Applications include powering FPGA/CPUs, datacom/telecom systems, Distributed Bus Architectures (DBA), programmable logic, and mixed voltage systems.
- Quick response to load change, outstanding thermal derating performance
- Over current protection, power good (PG) signal
- 4V maximum output voltage
- 30A maximum output current
- Input voltage range from 4.5V to 15V
- Efficiency is 94.4% typical at (Vin=12.0V, Vout=4.0V, Iout=30A)
- Fixed switching frequency is 425KHz typical
- Line regulation is ±1% of Vout typical
- Load regulation is ±1% of Vout typical
- Operating temperature range from -40°C to 105°C
Product details
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | MYSGK4R030ERSR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
