Description
Product Overview

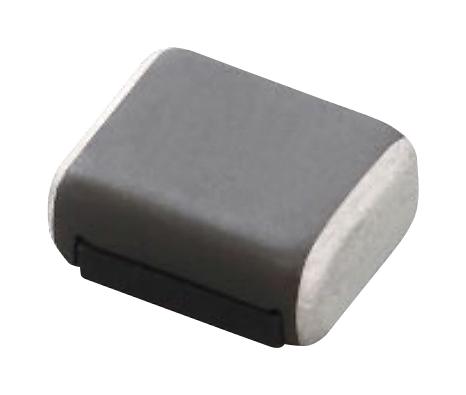

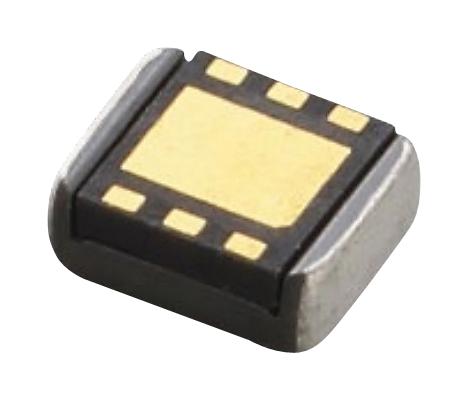

MYRBP330080B21RE is a MYRBP series, PicoBK� synchronous step-up mini DC/DC converter. A stable step-up power supply is configured using only two capacitors connected externally. An internal coil simplifies the circuit and enables minimization of noise and other operational trouble due to the circuit wiring. A wide operating voltage range of 0.65V to 6.0V enables support for applications that require an internally fixed output voltage (2.2V to 5.5V). It is used in applications such as portable equipment, beauty, and health equipment, wearable devices, game and hobby, PC peripherals, and devices with 1~3 alkaline, 1~3 nickel hydride, 1 lithium, and 1 Li-ion.
- Over-current limit (integral latch method), output short-circuit protection
- Soft-start, bypass switch function, ceramic capacitor
- Supply current is 3mA maximum at (VOUT=VBAT= VOUT(T)-0.2V)
- Oscillation frequency is 3.6MHz maximum at (VBAT= VOUT(T)×0.5, IOUT=100mA)
- 98% maximum duty cycle at (VBAT=1.2V, VOUT= VOUT(T)-0.2V)
- Efficiency is 90% typical at (VBAT= VOUT(T)×0.6, IOUT=100mA)
- Soft-start time is 1.0ms maximum
- Stand-by current is 1?A typical at (VBAT=VLx=6.0V,VCE=0V)
- Operating temperature range from -40°C to +85°C
Product details
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | MYRBP330080B21RE |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
