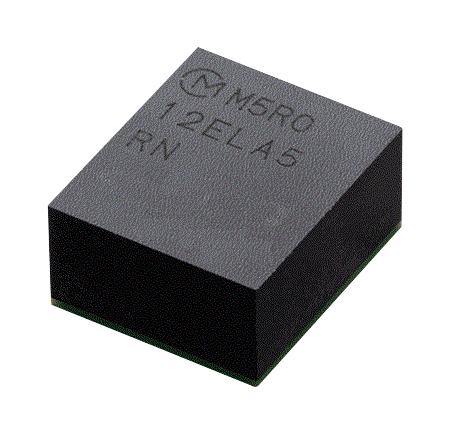

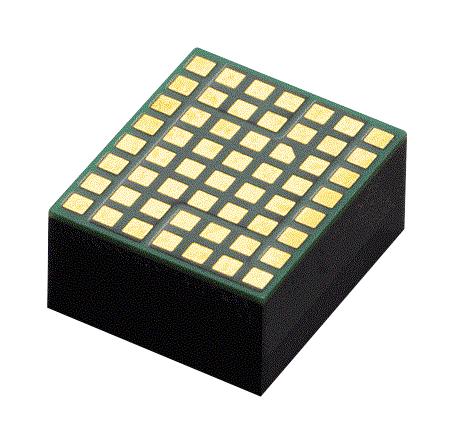

MURATA POWER SOLUTIONS MYMGM1R824ELA5RN Non Isolated POL DC/DC Converter, Step Down, Module, 700 mV, 1.8 V, 24 A

MYMGM1R824ELA5RN is an MGM series miniature MonoBK� called �monoblock�, a non-isolated point-of-load (PoL) DC-DC power converter for embedded applications. This converter has input voltage ranges of 7.5V to 15V and a maximum output current of 24A. Based on a fixed frequency synchronous buck converter switching topology, this high power conversion efficient PoL module features programmable output voltage 0.7 to 1.8V, ON/OFF control, power good (PGOOD) signal output, and PMBusTM ALERT output. This product also includes under-voltage lockout (UVLO), output short circuit protection(SCP), overcurrent protection (OCP), and over-voltage protection (OVP). under-voltage protection (UVP) and overtemperature protection (OTP). It is used in applications such as PCIe /server applications, FPGA and DSP, datacom/telecom systems, distributed bus architectures (DBA), programmable logic, and mixed voltage.

• Quick response to load change, outstanding thermal derating performance
• Power good (PGOOD) signal, high reliability / temperature cycle test
• Minimum VOUT setting resolution 2mV/bit
• Maximum output voltage range from 0.7V to 1.8V
• 24A maximum output current
• Input voltage range from 7.5V to 15V
• Fixed switching frequency is 400KHz typical at (VIN = 12V, IOUT = 24A, TA = 25°C)
• VIN current supply, switching is 100mA typical at (VIN = 12V, IOUT = 0A)
• VIN current supply, shutdown is 1mA typical at (VIN = 12V, EN = 0V)
• Operating temperature range from -40°C to 105°C, LGA package
