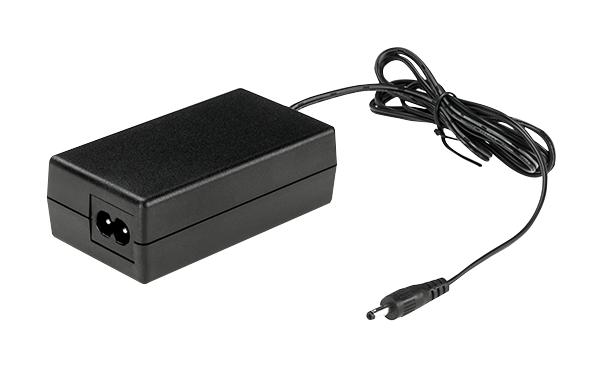

15DYS851-240210W is a 15DYS851-xxxyyyW series AC/DC external desktop power supply (PSU). It is certified to UKCA, cURus, TUV, FCC, (C-Tick), EN 60601-1/IEC 60601-1/ES 60601-1 standards and comply with (EU) 2019/1782, level VI efficiency regulations. It is primarily used in medical, ITE, audio and video industries.
- Over current, short circuit, over voltage protection
- Input voltage range from 90 to 264VAC, input current is 1.3A maximum
- Input frequency range from 47 to 63Hz
- 24VDC output voltage, 2.1A output current
- 50.4W output power
- Ripple and noise is 240mVp-p maximum
- Operating temperature range from 0 to 40°C
- MTBF is 50000hrs at 25°C, full load, and nominal
Other details
| Brand |
IDEAL POWER |
| Part Number |
15DYS851-240210W |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
