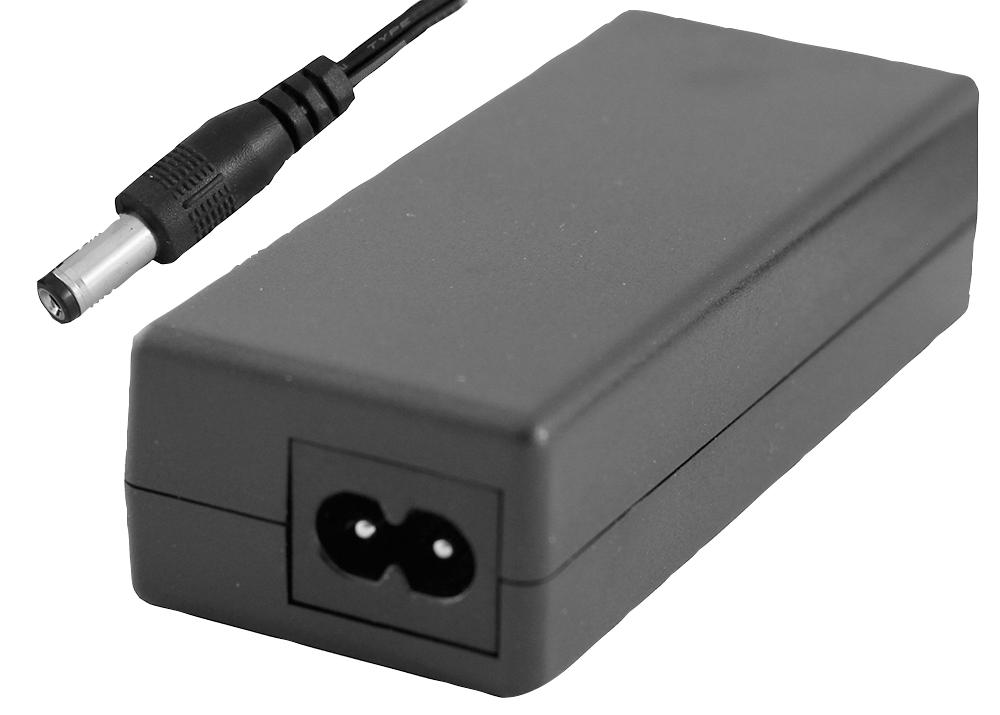

The 15DYS650-150336W from Ideal Power is a 2 pin IEC (C8) AC plug AC to DC desktop power supply. Approved to cETLus, TUV-GS, RCM (C-Tick), PSE, CCC, CB, FCC, CE standards.
- Input voltage range from 90VAC to 264VAC (full range), 47/63Hz frequency range
- Input current (RMS) is 1.3A at 90VAC and 0.6A at 264VAC
- 15VDC output voltage, ±5% voltage regulation at constant voltage mode
- 3.36A output current, barrel plug centre positive 2.1mm x 5.5mm output connector
- 50W maximum output power, size of 97.5mm x 52.5mm x 32.3mm
- 100% ATE tested, class II C8 inlet
- NRCAN, DOE, ERP, GEMS, efficiency level VI energy saving
- Ambient operating temperature range from 0°C to 45°C
- High reliability, built-in OVP, OCP & SCP
- 100% smart burn-in test for 4hours
- Mains lead sold separately
Applications
Consumer Electronics, Industrial
Product details
| Power Supply Applications |
ITE |
| No. of Outputs |
1 Output |
| Output Power Max |
50W |
| Output Voltage - Output 1 |
15VDC |
| Output Current - Output 1 |
3.36A |
| Output Voltage - Output 2 |
- |
| Output Current - Output 2 |
- |
| Output Connector |
Barrel Plug Center Positive 2.1mm x 5.5mm x 12mm |
| Output Voltage - Output 3 |
- |
| Output Current - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Input Voltage VAC |
90V AC to 264V AC |
| Product Range |
- |
| Plug Type |
Mains Plug Sold Separately |
Other details
| Brand |
IDEAL POWER |
| Part Number |
15DYS850-150336W |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
