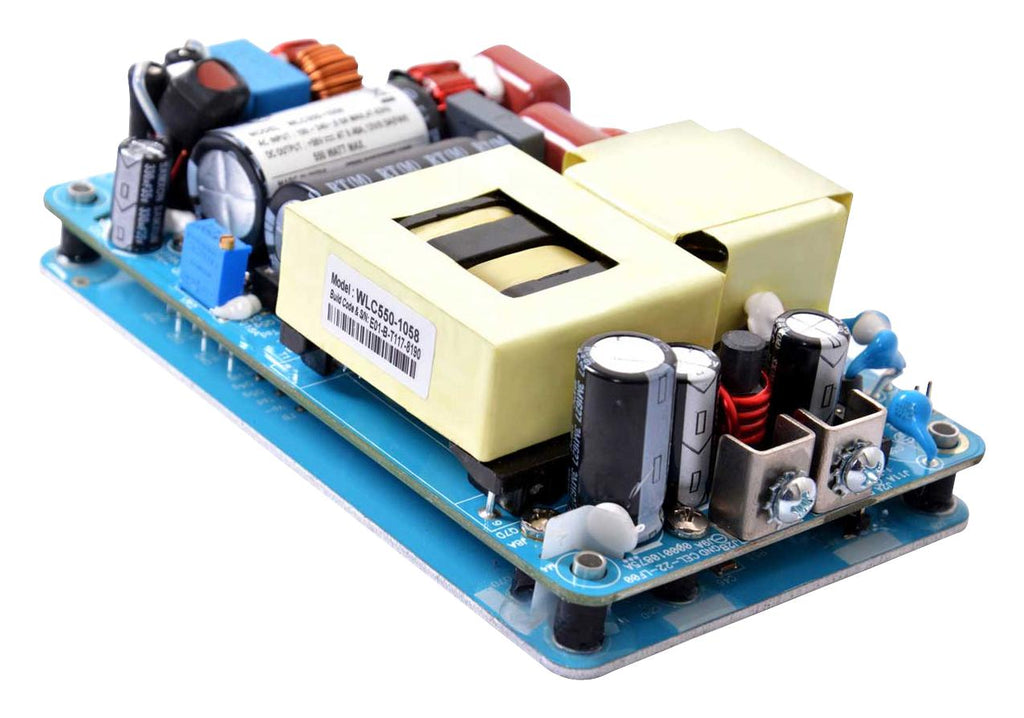

WLC550-1024 is a WLC550 EOS WLC conduction rated arctic addresses the growing demand in the market for conduction rated power supplies. 550W of EOS power in 22.5 cubic inches which can be used in conduction, convection or forced-air modes of operation. It includes over current, over voltage, short circuit protection. Certified by IEC 62368-1:2018, IEC 60950-1(ed.2);am1;am2 EN 62368-1:2014, A11, EN 60950-1:2006, A11, A1, A12, A2, UL 62368-1 & CAN/CSA C22.2 No. 62368-1:19, UL 60950-1 and CAN/CSA C22.2 No. 60950-1-07.
- Universal input voltage range from 90 to 264VAC/390VDC, output voltage is 24V
- Output power is up to 550W (forced air cooled)
- Typical efficiency is 91%(@ 230VAC full load)
- Up to 550W with forced air cooled, remote ON/OFF, 12V / 0.5A fan output, thermal shut-down feature
- MTBF : > 3M hours as per telcordia SR-332, issue 3
- Switching frequency range from 70 to 130KHz(PFC), 68 to 80KHz(PWM)
- Isolation voltage is 4000VAC (input to output, for ITE application)
- Operating temperature range from -40°C to 70°C
- Dimensions is 127 x 76.2x 38.1mm
Other details
| Brand |
EOS POWER |
| Part Number |
WLC550-1024 |
| Quantity |
Each |
