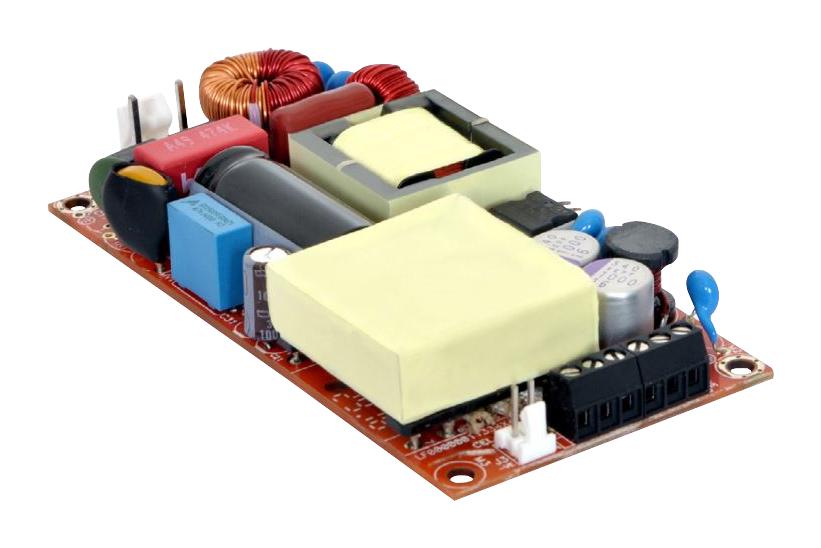

ULP180-1312 is a MULP40 series 180W industrial AC/DC converter with Molex header EOS power ultra low profile orange sets new height profile benchmarks in the power supply industry with a maximum height of 19.05mm. This packs up to 30W per cubic inch into their small profiles which enables customers miniaturize their applications without compromising on available power levels. It includes over current, over voltage, short circuit protection. Certified by EN/IEC/UL 62368-1(Ed .3).
- Universal input voltage range from 85 to 264VAC/390VDC, output voltage is 12V
- Output power is 180W with 13 CFM, upto 120W convection
- Typical efficiency is 88%, maximum output current is 9.37A(convection, 112.5W at 50°C)
- 180W with forced-air cooling, 3.37m hours, telcordia -SR332-issue 3 MTBF
- 12V / 0.5A fan output, thermal shut-down feature, no load power < 0.5W
- Switching frequency range from 70 to 130KHz(PFC), 50 to 80KHz(PWM)
- Isolation voltage is 4000VAC (input to output, AC for ITE application)
- Operating temperature range from -40°C to 70°C
- Dimensions is 101.60 x 50.8x 19.05mm
Other details
| Brand |
EOS POWER |
| Part Number |
ULP180-1312 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
