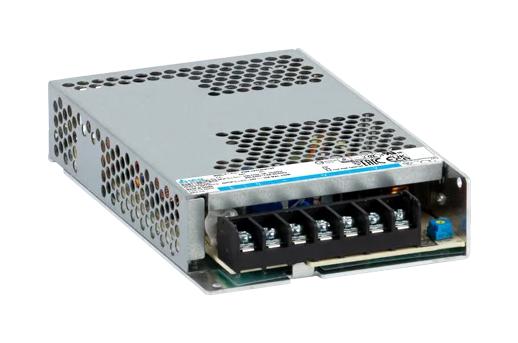

DELTA ELECTRONICS PMR-12V240W1AT AC/DC Front End Power Supply (PSU), ITE, Industrial & Household, 1 Output, Fixed, 240 W, 12 V

PMR-12V240W1AT is a PMR 240W series PMR panel mount power supply. It offers nominal output voltage across a wide operating temperature and obtains shock and vibration certification IEC 60068-2. It is designed in a low 30mm profile and comes with a universal AC input voltage ranging from 90VAC to 264VAC. It is made for installation in limited spaces. Its built-in active PFC circuit provides high power factor values and conforms to harmonic current emission standards IEC/EN 61000-3-2, Class A and Class D. It includes overvoltage, overload / overcurrent, over temperature and short circuit protection. Applications include factory automation, household appliance, building automation, machine automation, process automation, tests and measurement. Approvals are UL 62368-1, and CAN/CSA C22.2 No. 62368-1.

• Universal AC input voltage, lower no load power consumption
• Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D
• Low profile design: 30mm height
• Input voltage range from 90 to 264VAC, 127 to 375VDC, 12VDC rated output voltage
• 20.0A rated output current, single phase, terminal block connector type
• Nominal input frequency range from 50 to 60Hz
• 91.0% typical efficiency at 100% load at 230VAC, SGCC case cover
• 0.3W typ at 230VAC no load power consumption, M3.5 x 9 Pins (Rated 300 V / 20 A) terminal
• Dimension (L x W x H) is 159 x 97 x 30mm, 10 years expected cap life time
• Wide operating temperature range from -30°C to 70°C
