| ₹ 16740.72 includes GST and import duties. | |
| B2B customers can avail ₹ 2552.96 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

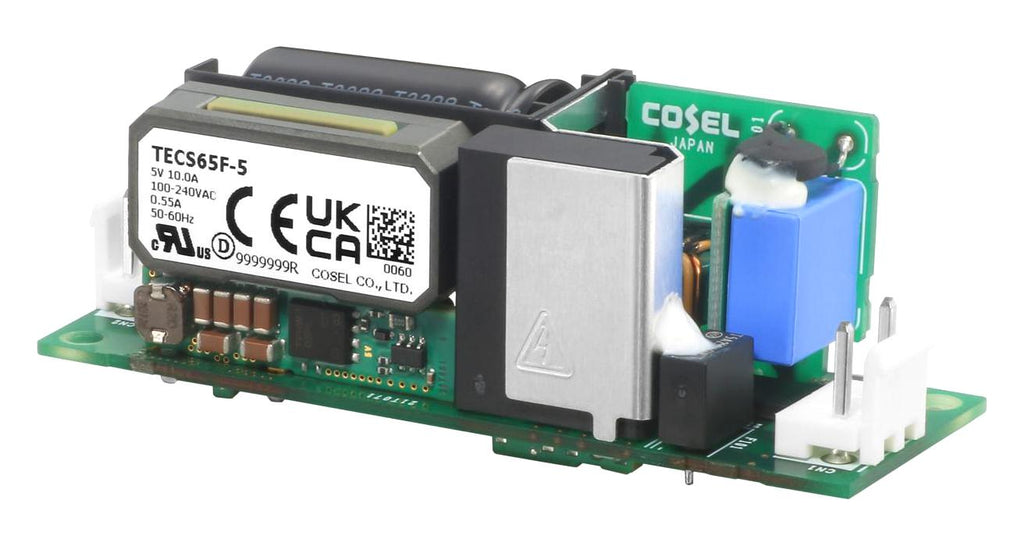

TECS65F-24 is a TECS series open frame power supply. Approvals are UL62368-1, C-UL (equivalent to CAN/CSA-C22.2No.62368-1), EN62368-1, Complies with DEN-AN.
- Small and lightweight, high efficiency
- Harmonic attenuator (complies with IEC61000-3-2)
- Built-in inrush current, overcurrent and overvoltage protection circuits
- Universal input, ClassII, 5-year warranty
- Universal input voltage range from 85 to 264V, 66.0W max output wattage
- 24V output voltage, 2.75A output current
- 92.5% (100V)/93.5%(230V) typical efficiency, 96mV max drift
- 3,000VAC isolation (1minute, input-output, 10mA, 50Mohm min)
- Operating temperature range from -10 to +70°C
- Case size (W x H x D) is 25.4 x 27.0 x 76.2mm
Product details
Other details
| Brand | COSEL |
| Part Number | TECS65F-24 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 16405.91 |
| 3-5 | ₹ 16238.5 |
| 5-10 | ₹ 15903.68 |
| 10+ | ₹ 15568.87 |
Bulk discount will be automatically applied during checkout based on quantity.
