Description
Product Overview

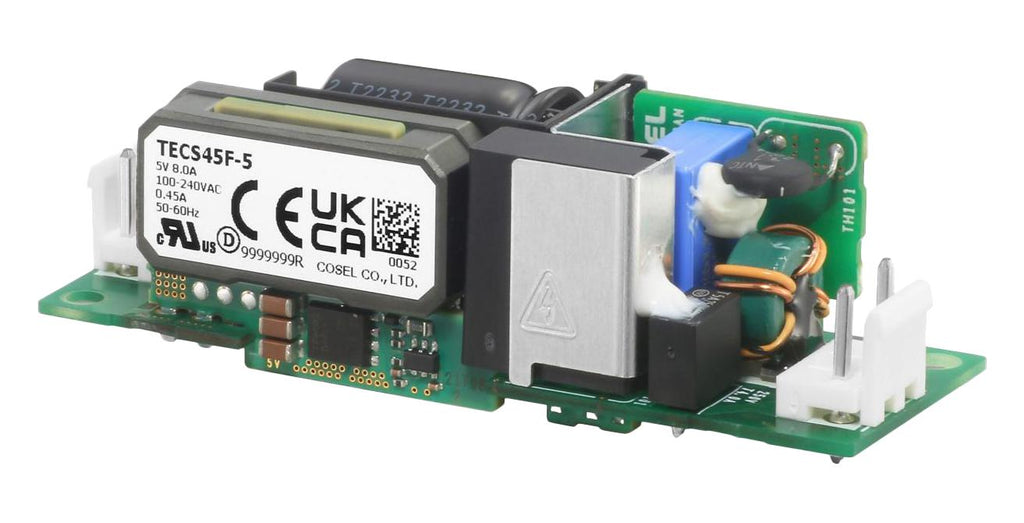

TECS45F-5 is a TECS series open frame power supply. Approvals are UL62368-1, C-UL (equivalent to CAN/CSA-C22.2No.62368-1), EN62368-1, Complies with DEN-AN.
- Small and lightweight, high efficiency
- Harmonic attenuator (complies with IEC61000-3-2)
- Built-in inrush current, overcurrent and overvoltage protection circuits
- Universal input, ClassII, 5-year warranty
- Universal input voltage range from 85 to 264V, 40W max output wattage
- 5V output voltage, 8A output current
- 90.0% (100V)/90.5%(230V) typical efficiency, 20mV max drift
- 3,000VAC isolation (1minute, input-output, 10mA, 50Mohm min)
- Operating temperature range from -10 to +70°C
- Case size (W x H x D) is 25.4 x 23.5 x 76.2mm
Product details
Other details
| Brand | COSEL |
| Part Number | TECS45F-5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
