Description
Product Overview

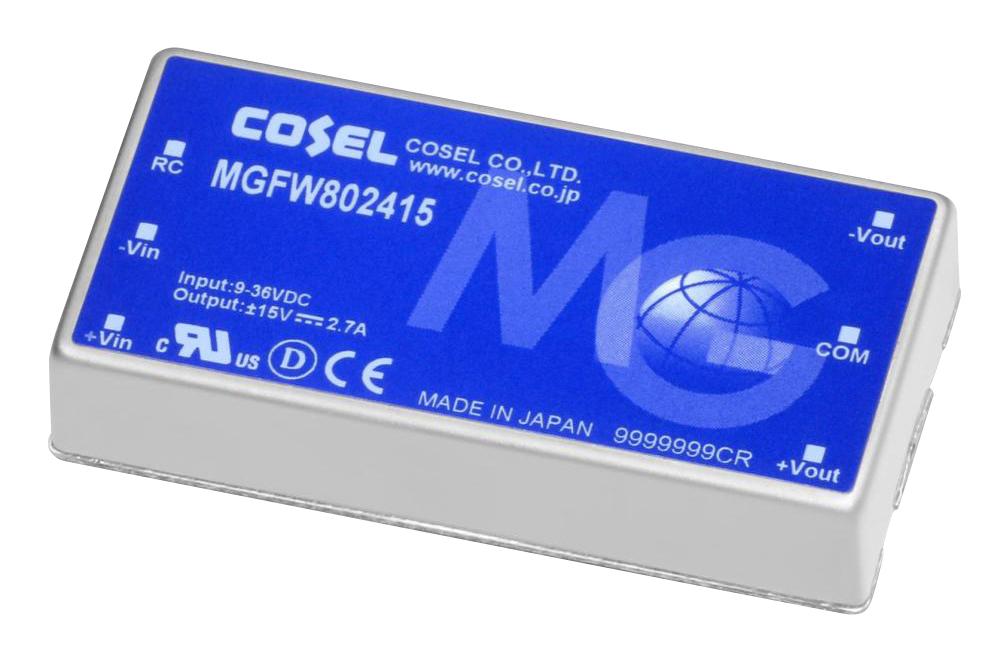

MGFW802415 is a MGFW80 series PCB mount DC-DC converter in an industry standard 1"X2" package. It features include built-in overcurrent protection circuits (recovers automatically), built-in remote ON/OFF and a six-sided shield.
- Input voltage range from 9V to 36V
- Output power of 81W
- Output voltage of ±15V, output current of 2.7A/2.7A
- I/O isolation voltage DC1,500V (1 minute)
- High reliability : not built-in aluminium and tantalum electrolytic capacitor
- Operating temperature/humidity of -40 to +85?, 20 to 95%RH (non condensing) (required derating)
- UL62368-11, C-UL, EN62368-1 safety approvals
- 25.4 x 9.9 x 50.8mm (W x H x D) case size
- 10 year warranty
Product details
Other details
| Brand | COSEL |
| Part Number | MGFW802415 |
| Quantity | Each |
| Technical Data Sheet EN |  |
