Description
Product Overview

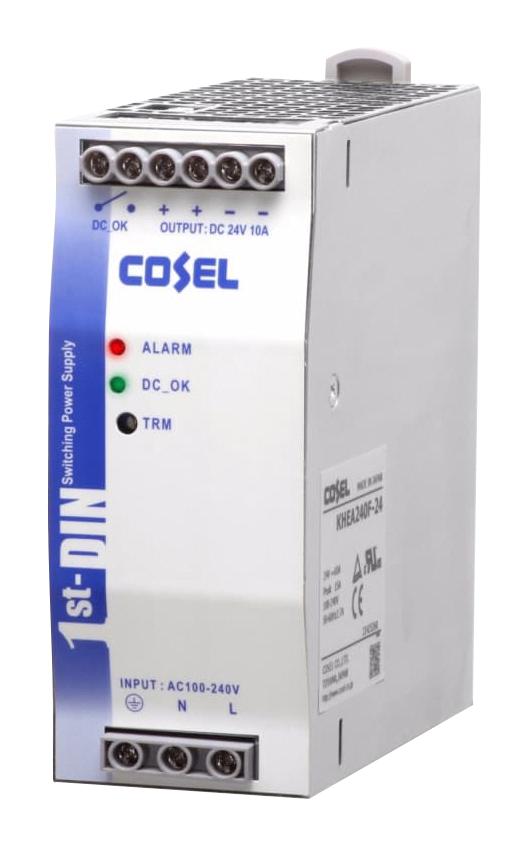

KHEA240F-24 is a KH series DIN rail type, AC-DC power supply. Safety agency approvals are UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No. 62368-1), EN62368-1, UL508, UL121201, ATEX, GL, Complies with DEN-AN (AC input), UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No. 62368-1), EN62368-1 (DC input).
- Euro style I/O terminals
- Wide operating ambient temperature range
- Built in overcurrent protection, overvoltage protection circuits
- Low power consumption at no load, complies with SEMI F-47
- Input voltage range from 85 to 264VAC/88 to 370VDC
- 240W max output wattage, 24VDC output voltage, 10A output current (peak 25A)
- 92% (ACIN 115V)/94% (230V) typical efficiency
- 3,000VAC isolation (1minute, input-output, 10mA, 50Mohm min)
- 5-year warranty, operating temperature range from -25 to +70°C
- Case size (W x H x D) is 50 x 124 x 117mm
Product details
Other details
| Brand | COSEL |
| Part Number | KHEA240F-24 |
| Quantity | Each |
| Technical Data Sheet EN |  |
