| ₹ 395.2 includes GST and import duties. | |
| B2B customers can avail ₹ 60.27 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

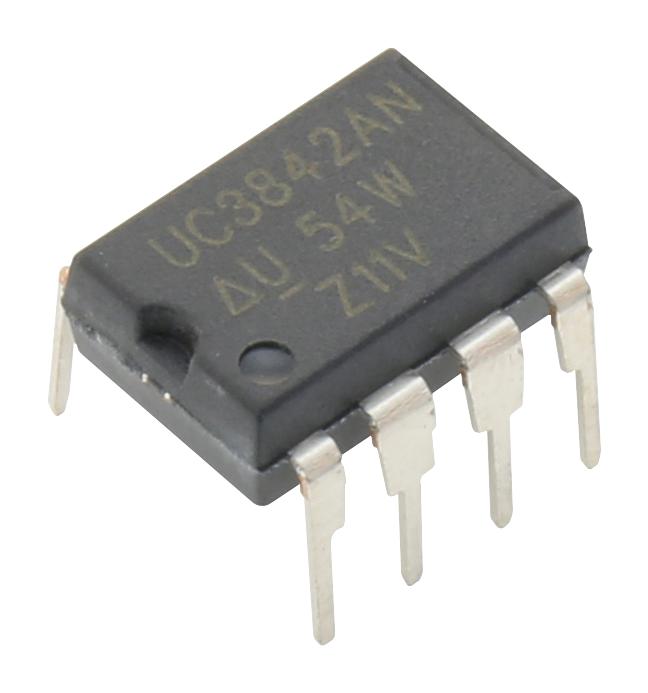

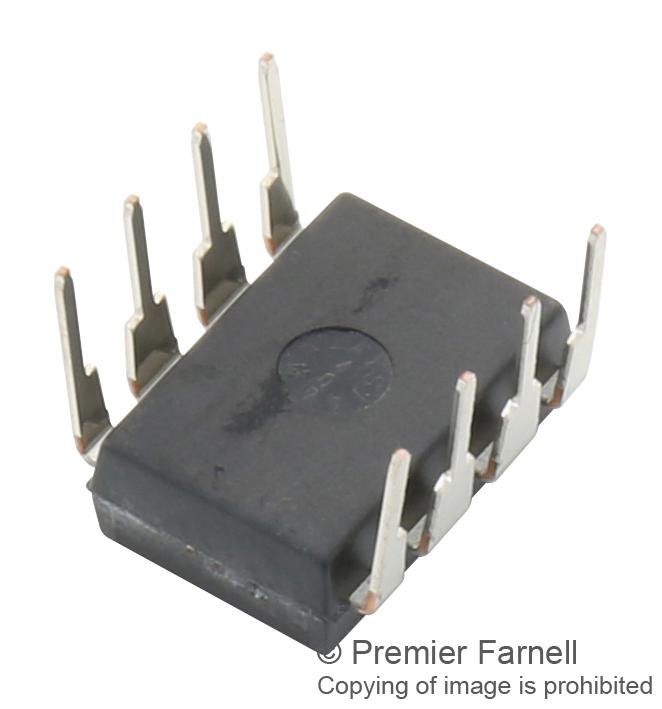

The UC3842AN is a Current Mode PWM Controller optimized for off-line and DC to DC converters. Providing the necessary features to control current mode switched mode power supplies, this controller has the following improved features. Start up current is guaranteed to be less than 0.5mA. Oscillator discharge is trimmed to 8.3mA. During under-voltage lockout, the output stage can sink at least 10mA at less than 1.2V for VCC over 5V.
- Optimized for off-line and DC to DC converters
- Low start up current (0.5mA)
- Trimmed oscillator discharge current
- Automatic feed forward compensation
- Pulse-by-pulse current limiting
- Enhanced load response characteristics
- Under-voltage lockout with hysteresis
- Double pulse suppression
- High current totem pole output
- Internally trimmed bandgap reference
- Low RO error amp
- Green product and no Sb/Br
Applications
Power Management
Product details
| Input Voltage: 25V |
| Output Voltage: 15V |
| Output Current: 1A |
| Supply Voltage Min: 12V |
| Supply Voltage Max: 25V |
| No. of Pins: 8Pins |
| Frequency: 500kHz |
| Operating Temperature Min: 0°C |
| Operating Temperature Max: 70°C |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | UC3842AN |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 387.3 |
| 3-5 | ₹ 383.34 |
| 5-10 | ₹ 375.44 |
| 10+ | ₹ 367.54 |
Bulk discount will be automatically applied during checkout based on quantity.
