Description

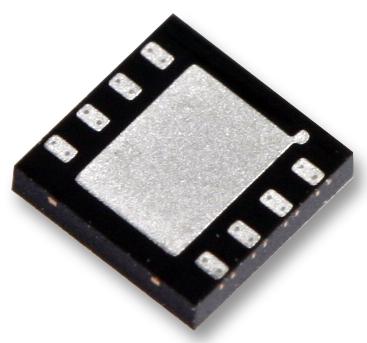

The TPS62740DSST is an industry's first Step-down Converter features typical 360nA quiescent current and operating with a tiny 2.2µH inductor and 10µF output capacitor. This new DCS-Controlâ�¢ based device extends the light load efficiency range below 10µA load currents. TPS62740DSST supports output currents up to 300mA. The device operates from rechargeable Li-Ion batteries, Li-primary battery chemistries such as Li-SOCl2, Li-MnO2 and two or three cell alkaline batteries. The input voltage range up to 5.5V allows also operation from an USB port and thin-film solar modules. The output voltage is user selectable by four VSEL pins within a range from 1.8V to 3.3V in 100mV steps. TPS62740DSST features low output ripple voltage and low noise with a small output capacitor. Once the battery voltage comes close to the output voltage (close to 100% duty cycle) the device enters no ripple 100% mode operation to prevent an increase of output ripple voltage.
- Up to 90% efficiency at 10µA output current
- RF friendly DCS-Control�
- Low output ripple voltage
- 16 Selectable output voltages in 100mV steps between 1.8 to 3.3V
- Automatic transition to no ripple 100% mode
- Slew rate controlled load switch
- Discharge function on VOUT/LOAD
- Power good output
- Optimized for operation with a tiny 2.2µH inductor and 10µF COUT
- 31mm² Total Solution
- Green product and no Sb/Br
Applications
Wireless, Communications & Networking, Industrial, Alternative Energy
Warnings
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
Product details
| Input Voltage Min: 2.2V |
| Input Voltage Max: 5.5V |
| No. of Outputs: 1Outputs |
| No. of Pins: 12Pins |
| Output Current: 300mA |
| Output Voltage Min: 1.8V |
| Output Voltage Max: 3.3V |
| Switching Frequency: 2MHz |
| Operating Temperature Max: 85°C |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TPS62740DSST |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
