Texas Instruments LM26001MXA/NOPB DC-DC Switching Buck (Step Down) Regulator Adjustable 4V-38Vin 1.25V-35Vout 1.5Aout HTSSOP-16

The LM26001MXA/NOPB is a Switching Regulator designed for the high-efficiency requirements of applications with standby modes. The device features a low-current sleep mode to maintain efficiency under light-load conditions and current-mode control for accurate regulation over a wide input voltage range. Quiescent current is reduced to 10µA typically in shutdown mode and less than 40µA in sleep mode. Forced PWM mode is also available to disable sleep mode. The LM26001 can deliver up to 1.5A of continuous load current with a fixed current limit, through the internal N-channel switch. The part has a wide input voltage range of 4 to 38V and can operate with input voltages as low as 3V during line transients. Operating frequency is adjustable from 150 to 500kHz with a single resistor and can be synchronized to an external clock. Other features include power good, adjustable soft-start, enable pin, input undervoltage protection and an internal bootstrap diode for reduced component count.

• High-efficiency sleep mode
• Cycle-by-cycle current limit
• Synchronizable to an external clock
• Power good flag
• Forced PWM function
• Adjustable soft-start
• Thermal shutdown
• 40µA Typical quiescent current in sleep mode
• 10µA Typical quiescent current in shutdown mode
• 1.5% Reference accuracy

• Green product and no Sb/Br

Applications

Automotive, Aerospace, Defence, Military, Power Management, Consumer Electronics

Other details

Brand	TEXAS INSTRUMENTS
Part Number	LM26001MXA/NOPB
Quantity	Each

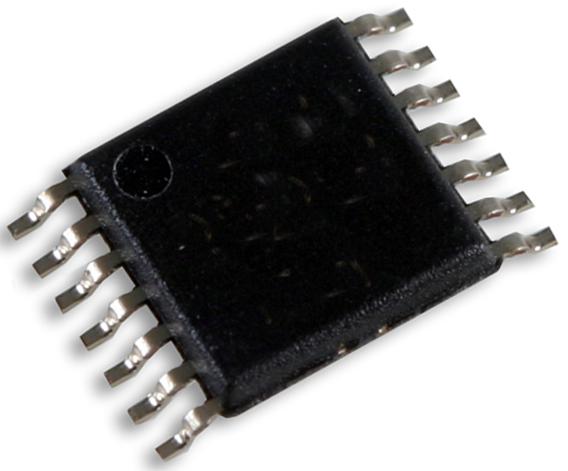

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
