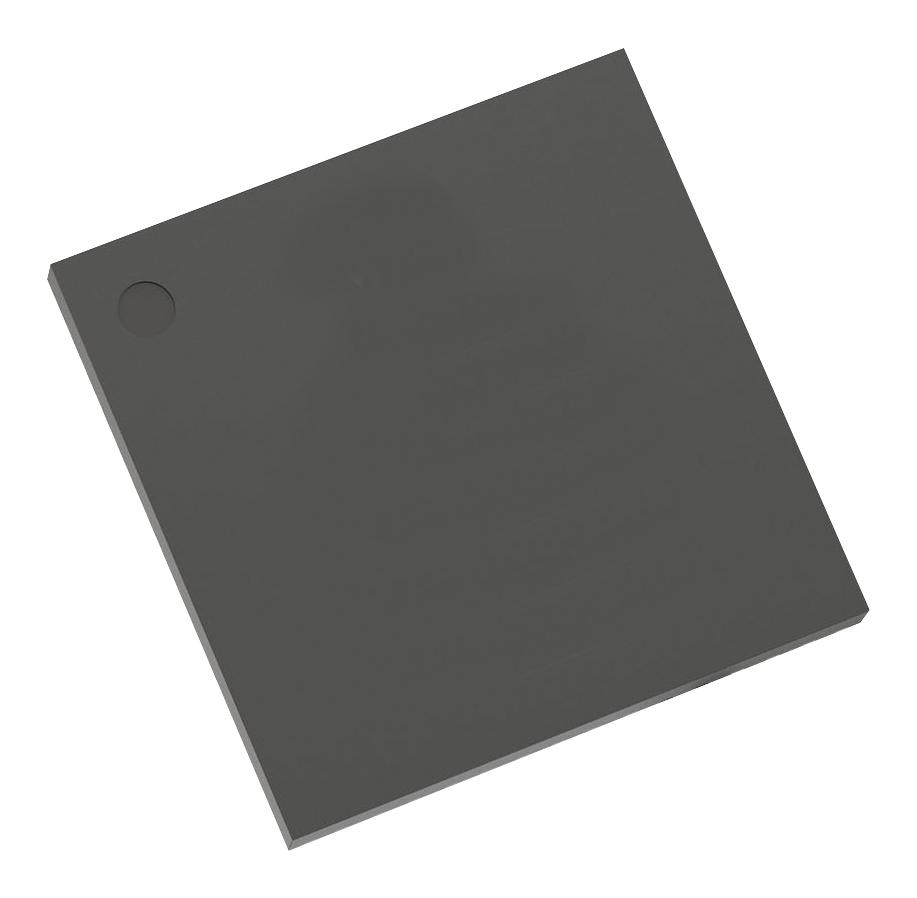

MONOLITHIC POWER SYSTEMS (MPS) MPQ4316AGRE-AEC1-P DC-DC Synchronous Buck Regulator, Adjustable, 3.3V to 45V in, 0.815V to42.75V/6A out, WFQFN-20

MPQ4316A is a configurable-frequency, synchronous, step-down switching converter with an integrated, internal high-side MOSFET (HS-FET) and low-side MOSFET (LS-FET). The device provides up to 6A of highly efficient output current (IOUT) with current mode control for fast loop response. The wide 3.3V to 45V input voltage (VIN) range accommodates a variety of step-down applications in automotive input environments. A low 1.7μA quiescent current (IQ) in shutdown mode allows the device to be used in battery powered applications. High power conversion efficiency across a wide load range is achieved by scaling down the switching frequency (fSW) under light-load conditions to reduce switching and gate driver losses. Thermal shutdown provides reliable, fault-tolerant operation. A high duty cycle and low-dropout mode are provided for automotive cold-crank conditions. Applications include automotive infotainment, automotive clusters, ADAS, industrial power systems.

• Designed for automotive applications, 6A continuous output current, 100ns minimum on time (tON-MIN)
• Junction temperature (TJ) operation from -40°C to +150°C
• Increases battery life, 1.7μA low shutdown supply current, 18μA sleep mode quiescent current
• AAM mode increases efficiency under light loads
• High performance for improved thermals, internal 48mohm HS-FET and 20mohm LS-FET
• Optimized for EMC and EMI, 350KHz to 1000KHz configurable fSW for car battery applications
• Synchronize to external clock, out-of-phase synchronized clock output, FSS modulation
• Symmetric VIN pinout, CISPR25 Class 5 compliant, MeshConnectâ�¢ flip-chip package
• Power good (PG) output, external soft start (SS), selectable AAM mode or FCCM
• Low-dropout mode, hiccup overcurrent protection (OCP), QFN-20 package, AEC-Q100 qualified

MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
