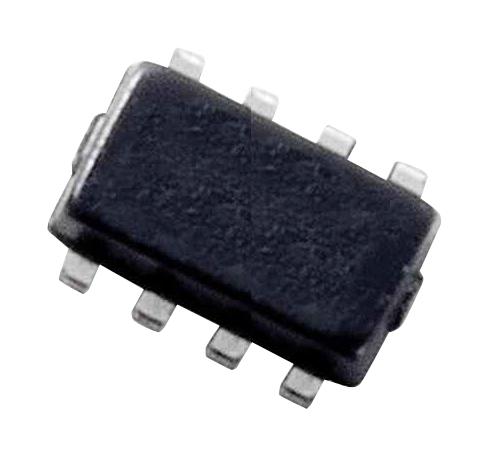

MONOLITHIC POWER SYSTEMS (MPS) MP2328CGTL-P DC-DC Converter, Synchronous Buck, 4.5 to 28 V In, 0.5V to 16 V Out, SOT-583-8

MP2328C is a fully integrated, high frequency, synchronous, rectified, step-down switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve 2A of continuous output current (IOUT) across a wide input voltage (VIN) range, with excellent load and line regulation. The MP2328C offers synchronous mode operation for high efficiency across the wide IOUT load range. Constant-on-time (COT) control provides very fast transient response and easy loop design, as well as tight output regulation. Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown. The MP2328C requires a minimal number of readily available, standard external components. It is available in a space-saving SOT583 package. Applications include game consoles, multi-function printers, power meters, flat-panel televisions and monitors and general-purpose power supplies.

• Wide 4.5V to 28V operating input voltage (VIN) range
• Wide 0.5V to 16V output voltage (VOUT) range
• ±1.5% internal reference accuracy overtemperature (OT)
• 130mohm/60mohm low RDS(ON) internal power MOSFETs
• 92% efficiency for 24V to 5V/2A condition
• Fast load transient response, 450KHz switching frequency (fSW)
• tON extension to improve dropout, configurable soft-start time (tSS)
• Power good (PG) indication, optimized performance with MPS inductor MPL-AL6060 series
• Forced continuous conduction mode (FCCM)

MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
