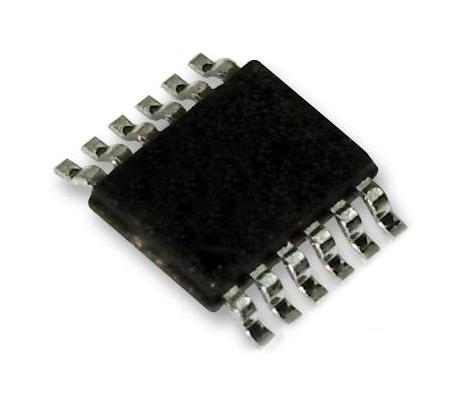

ANALOG DEVICES LTC7066RMSE#WTRPBF Gate Driver, 1 Channels, High Side and Low Side, MOSFET, 12 Pins, MSOP-EP

LTC®7066 is an automotive half bridge driver with floating grounds and adjustable dead time. It drives two N-Channel MOSFET in a half-bridge configuration with supply voltages up to 140V. Both high-side and low-side drivers can drive the MOSFETs with a different ground reference, providing excellent noise and transient immunity. Additional features include UVLO, TTL/ CMOS compatible inputs, adjustable turn-on/-off delays, and shoot-through protection. Application includes automotive and industrial power systems, telecommunication power systems, half-bridge and full-bridge converters.

• Unique symmetric floating gate driver architecture
• High noise immunity, tolerates ±10V ground difference
• 140V maximum input voltage independent of IC supply voltage VCC
• 140V maximum input supply operating range (TA = 25°C)
• 4V to 14V gate driver voltage
• Adaptive shoot-through protection, adjustable dead time
• TTL/CMOS compatible input, VCC UVLO/OVLO and floating supplies UVLO
• Drives dual N-Channel MOSFETs
• Open-drain fault indicator (VCC UVLO/OVLO, gate driver UVLO and thermal shutdown)
• 12 lead plastic MSOP package, operating junction temperature range from -40°C to 150°C
