Description
Product Overview
LT3980 is an adjustable frequency (100kHz to 2.4MHz) monolithic buck switching regulator that accepts input voltages upto 58V (80V transient). A high efficiency 200m? switch is included on the die along with a boost schottky diode and the necessary oscillator, control, and logic circuitry. Current mode topology is used for fast transient response and good loop stability. Catch diode current sense (DA pin) protects the circuit during input voltage transients even when a high switching frequency is used. Low ripple burst mode operation maintains high efficiency at low output currents while keeping output ripple below 15mV in a typical application. It is widely used in application such as automotive battery regulation, distributed supply regulation, industrial supplies, wall transformer regulation etc.
- Feedback voltage is 790mV typ
- Output current is 2A max
- Low shutdown current( IQ ) is <lt/> 1µA
- Synchronizable between 250kHz to 2MHz
- Power good flag
- Thermal protection, soft-start capability
- Operating temperature is �40°C to 125°C

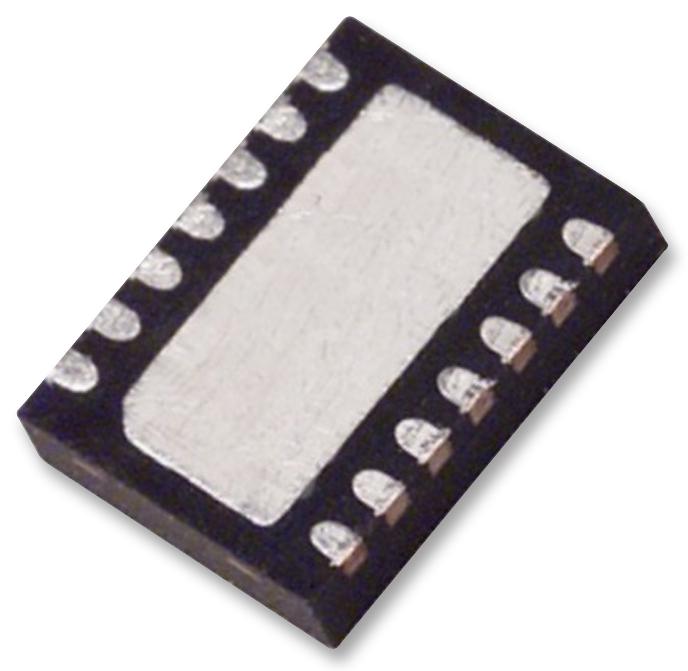

- Packaging style is 14-lead plastic DFN
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | LT3980EDE#TRPBF |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1578.18 |
| 3-5 | ₹ 1562.08 |
| 5-10 | ₹ 1529.87 |
| 10+ | ₹ 1497.66 |
Bulk discount will be automatically applied during checkout based on quantity.
