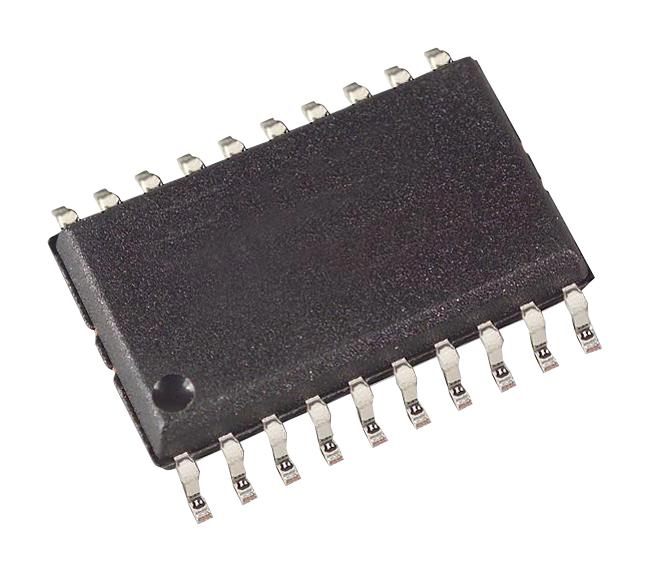

ANALOG DEVICES LT1176CSW#PBF DC-DC Switching Buck Regulator, Adjustable, 8 to 35V in, 2.2 to 30V / 1.2A Out, SOIC-20

LT1176CSW#PBF is a 1A monolithic bipolar switching regulator which requires only a few external parts for normal operation. The power switch, all oscillator and control circuitry and all current limit components are included on the chip. The topology is a classic positive buck configuration but several design innovations allow this device to be used as a positive-to-negative converter, a negative boost converter, and as a flyback converter. The switch output is specified to swing below ground. The LT1176 uses a true analogue multiplier in the feedback loop. This makes the device respond nearly instantaneously to input voltage fluctuations and makes loop gain independent of input voltage. As a result, dynamic behaviour of the regulator is significantly improved over previous designs. Applications include buck converter with output voltage range of 2.5V to 30V, positive-to-negative converter, negative boost converter, multiple output buck converter.

• Excellent dynamic behaviour, micropower shutdown mode
• Supply current is 7.5mA typical at (VFB = 2.5V, VIN ? 35V)
• Switch current limit is 1.7A typical at (ILIM open)
• Maximum duty cycle is 90% typical
• Switching frequency is 100KHz typical at (TA = 25°C)
• Shutdown pin current is 10µA typical at (VSHDN = 5V)
• Error amplifier voltage gain is 2000V/V typical at (1V ? VC ? 4V, TA = 25°C)
• Error amplifier source and sink current is 140µA typical at (source (VFB = 2V or VSENSE = 4V))
• Operating temperature range from 0°C to 125°C
• 20-lead plastic SOL package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
