ANALOG DEVICES LT1111CN8-12#PBF Switching Regulator, Boost, Buck, 72kHz, 2V to 30V Input, 12V Output, 1A, Fixed, PDIP-8

LT1111CN8-12#PBF is a versatile micropower DC/DC converter. The LT1111 functions equally well in step-up, step-down, or inverting applications. The LT1111 oscillator is set at 72KHz, optimizing the device to work with off-the-shelf surface-mount inductors. This device can deliver 5V at 100mA from a 3V input in step-up mode or 5V at 200mA from a 12V input in step-down mode. Switch current limit can be programmed with a single resistor. An auxiliary open-collector gain block can be configured as a low-battery detector, linear post-regulator, undervoltage lock-out circuit, or error amplifier. Applications include 3V to 5V, 5V to 12V converters, 9V to 5V, 12V to 5V converters, remote controls, peripherals and add-on cards, battery backup supplies, uninterruptible supplies, laptop and palmtop computers, cellular telephones, portable instruments, and flash memory VPP generators.

• Operates at supply voltages from 2V to 30V, works with surface mount inductors
• Only three external components required, step-up or step-down mode
• Low-battery detector comparator on-chip, user adjustable current limit
• Quiescent current is 300µA typical at (Switch OFF, TA = 25°C)
• Output hysteresis is 75mV typical
• Oscillator frequency is 72KHz typical at (TA = 25°C)
• Current limit is 400mA typical at (220 ohm from ILIM to VIN, TA = 25°C, VIN = 3V)
• Switch OFF leakage current is 1µA typical at (measured at SW1 pin, VSW1 = 12V)
• Operating temperature range from 0°C to 70°C

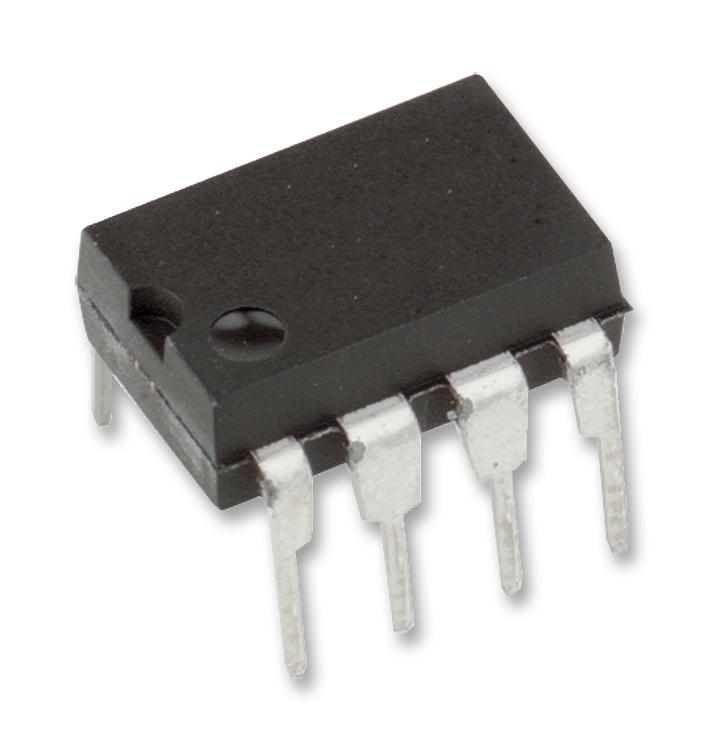

• 8-lead plastic DIP package
