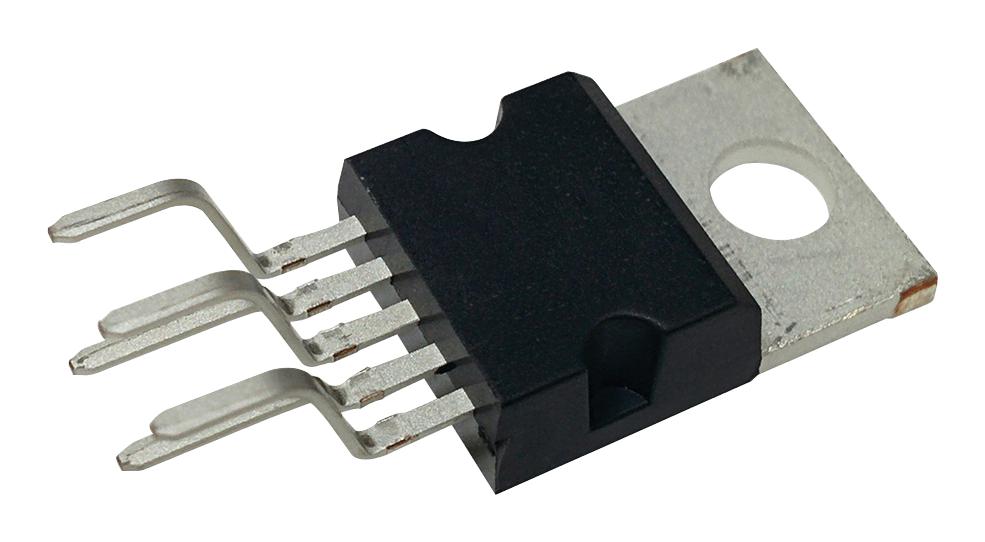

ANALOG DEVICES LT1076CT-5#PBF DC-DC Switching Buck Regulator, Fixed, 7.3 to 45V in, 5 V/2 A out, TO-220-5

LT1076-5 is a 2A fixed 5V output monolithic bipolar switching regulator which requires only a few external parts for normal operation. The power switch, all oscillator and control circuitry, all current limit components, and an output monitor are included on the chip. The topology is a classic positive �buck� configuration but several design innovations allow this device to be used as a positive-to-negative converter, a negative boost converter, and as a flyback converter. The switch output is specified to swing 40V below ground, allowing the device to drive a tapped inductor in the buck mode with output currents upto 4A. It uses a true analogue multiplier in the feedback loop. This makes the device respond nearly instantaneously to input voltage fluctuations and makes loop gain independent of input voltage. It is used in application such as 5V output buck converter, tapped inductor buck converter with 4A output at 5V, positive-to-negative converter etc.

• Supply current is 8.5mA typical
• Switching frequency is 100KHz typical
• 2% output voltage tolerance over temperature
• Greatly improved dynamic behaviour
• Switch current limit is 2.6A typical
• Shutdown pin current is 10?A typical at (VSHDN = 5V)
• Multiplier reference voltage is 24V typical
• Operating temperature is 0°C to 70°C
• Package style is 7-lead plastic TO-220

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
