Trinamic / Analog Devices TMC2210-EVAL-KIT TMC2210-EVAL-KIT Evaluation Board TMC2210 Stepper Motor Driver Power Management - Control New

TMC2210-EVAL-KIT is a set of one MCU board Landungsbruecke, one Eselsbruecke and one TMC2210-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics. For diagnosis, all signals between MCU and TMC2210 are accessible with probes on the bridge board. TMC2210-EVAL can be used with or without the Landungsbruecke MCU board. All you need to get started is a power supply and Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behaviour visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.

• 140mm x 85mm size

Contents

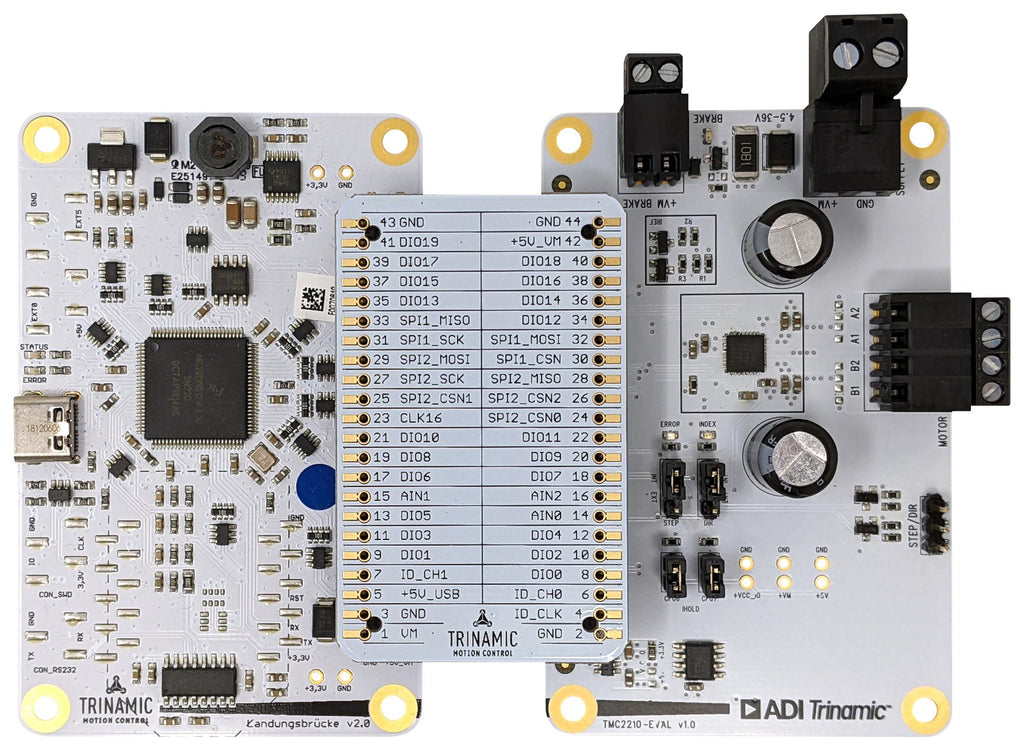

TMC2210 evaluation board, Landungsbruecke (interface board to a PC), Eselsbruecke (bridge connector board).

Other details

Brand	TRINAMIC / ANALOG DEVICES
Part Number	TMC2210-EVAL-KIT
Quantity	Each
Technical Data Sheet EN
