Description

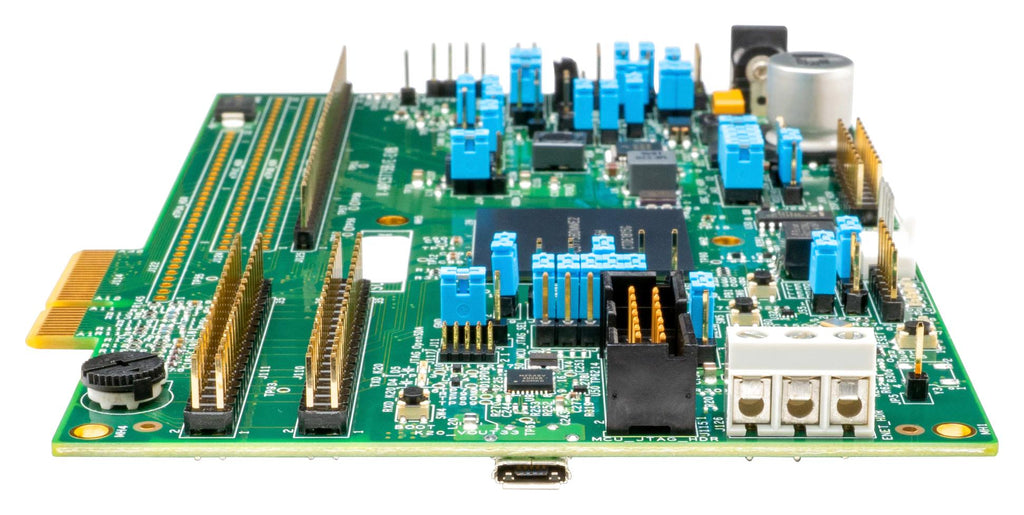

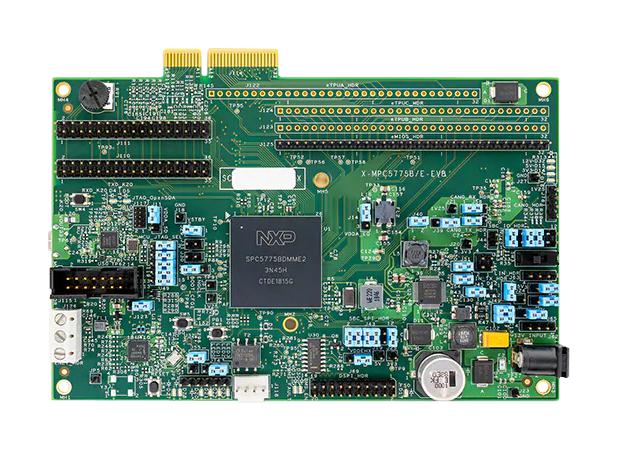

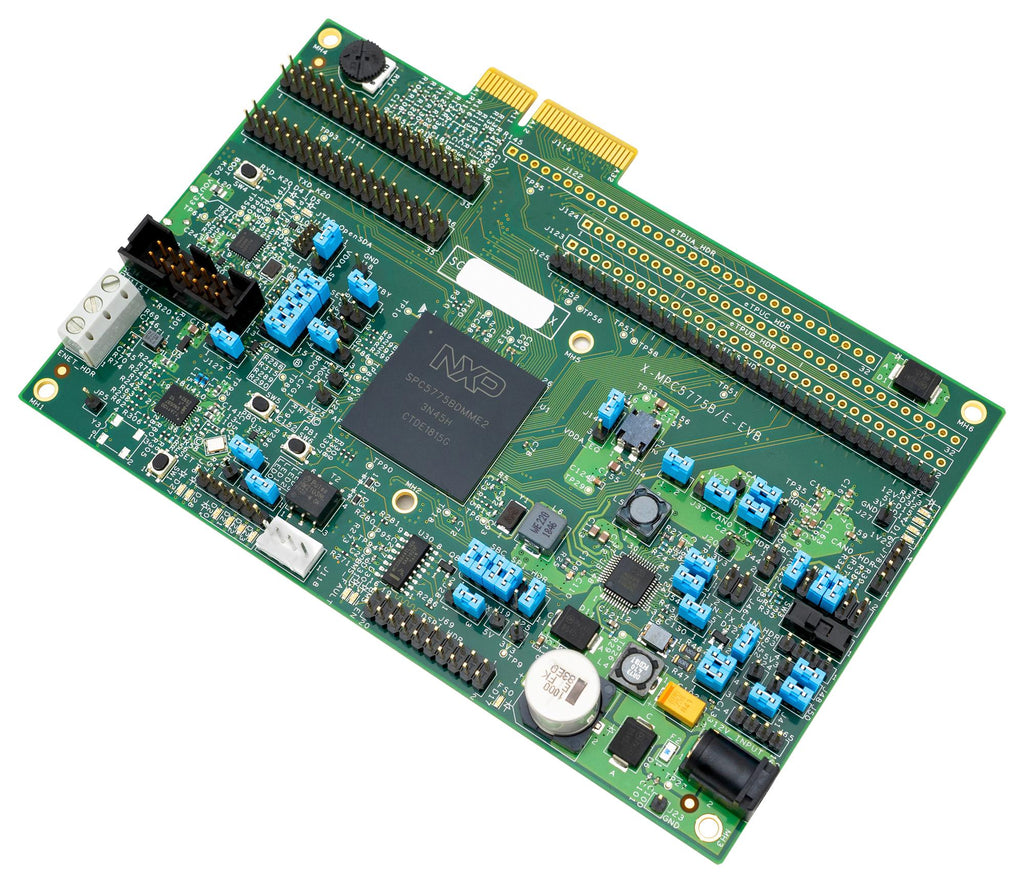

The MPC5775B-EVB are low-cost development boards engineered for battery management and inverter applications. Based on the 32-bit Power Architecture® MPC5775B ultra-reliable microcontrollers and the MC3377x battery cell controller, the MPC5775B-EVB is a highly-integrated development boards that help speed development.
- 32-bit Power Architecture® e200z7 three dual issue CPU cores MPC5775B MCU
- F6500 Grade 1 and Grade 0 safety power system basis chip with CAN flexible data transceiver
- TJA1145 High-speed CAN transceiver for partial networking
- TJA1100HN IEEE 100BASE-T1 compliant Automotive Ethernet PHY Transceiver
- MC33664 isolated network high-speed transceiver
- On-board interfaces for CAN and LIN
- On-board interfaces for Ethernet, USB, UART, DSPI
- Debug selectable between external debug connection via JTAG/on-board OpenSDA (JTAG to USB interface)
- Requires 12V external DC power supply (included with boards)
Evaluation board MPC5775B, 1 x 12V Power supply, 1 x micro USB cable, Standoffs.
Other details
| Brand | NXP |
| Part Number | MPC5775B-EVB |
| Quantity | Each |
| User Manual EN |  |
