Description
Product Overview

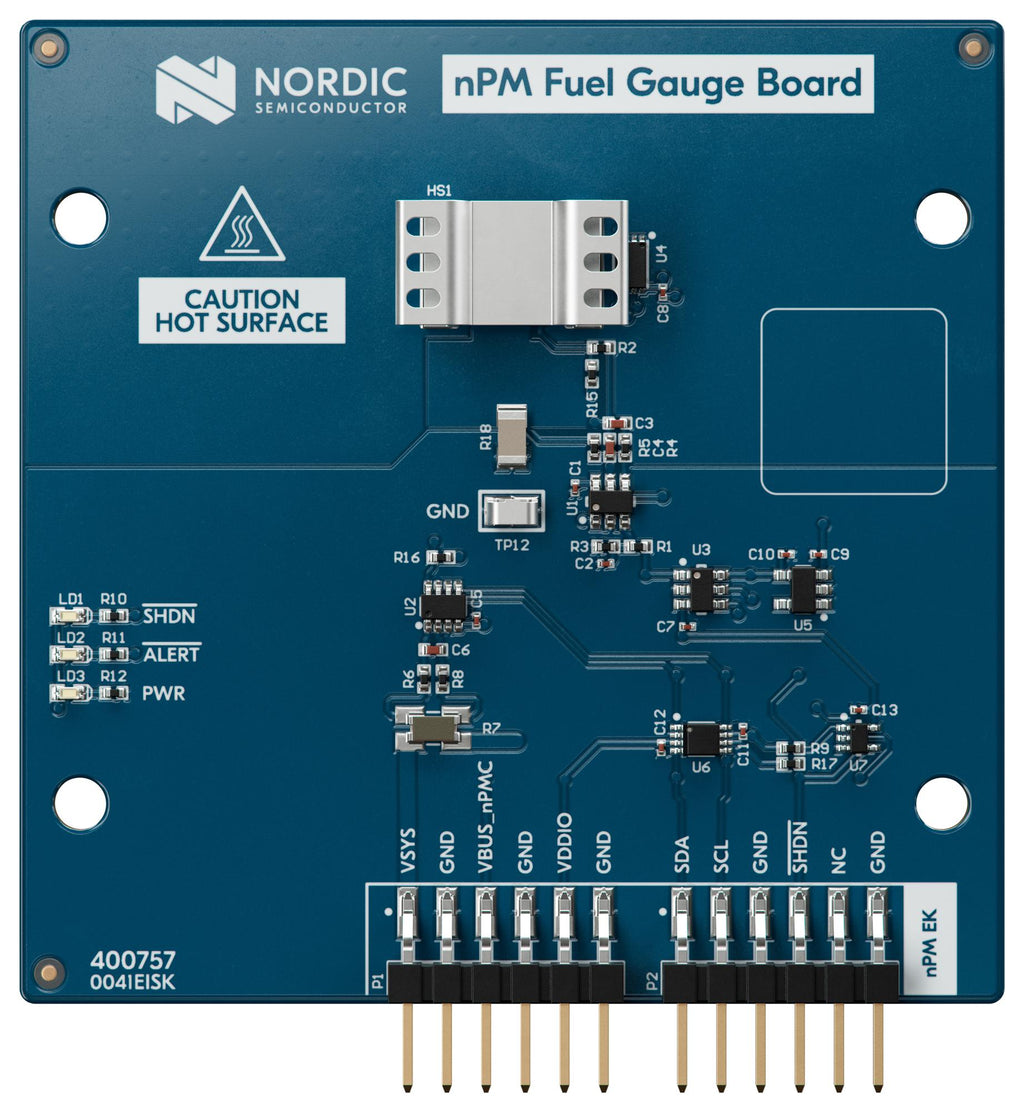

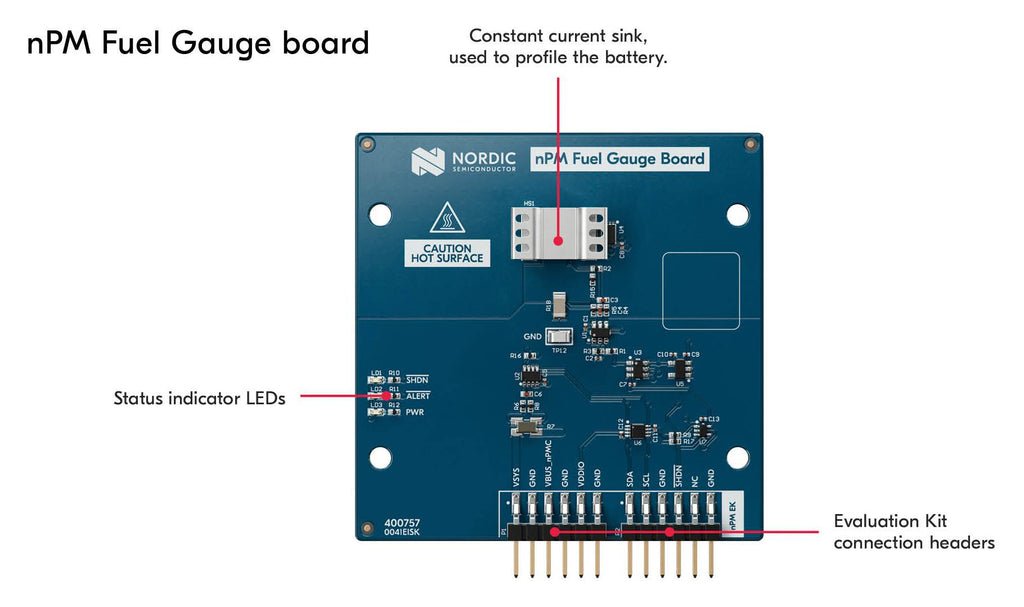

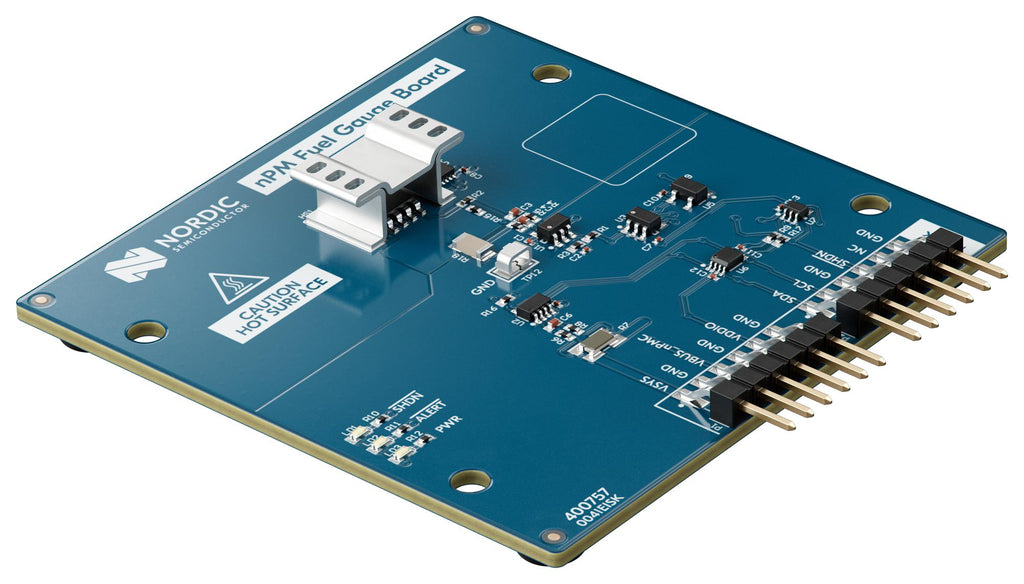

NPM-FG is a nPM fuel gauge board. Hardware add-on to profile batteries used for fuel gauge on Nordic Semiconductor PMICs (Power Management ICs). Tool for performing battery profiling with nPM PowerUP desktop software and a compatible evaluation kit. The nPM Fuel Gauge board (nPM FG) connects to any compatible Nordic semiconductor evaluation kit. The purpose of the board is to act as a constant current sink device during battery profiling with nPM PowerUP desktop software. The battery model generated in nPM PowerUP can be used for evaluation of fuel gauge in nPM PowerUP and exported as an include-file for use in any application using the Nordic fuel gauge algorithm. Typical applications include creation of virtual battery models with a compatible Nordic evaluation kit, evaluation of fuel gauge functionality of compatible Nordic PMICs.
- Currently supported kits: nPM1300 evaluation kit
- Constant current sink device with heat spreader
- Connector for compatible Nordic evaluation kit
Product details
Other details
| Brand | NORDIC SEMICONDUCTOR |
| Part Number | NPM-FG |
| Quantity | Each |
| Technical Data Sheet EN |  |
