Description
Product Overview

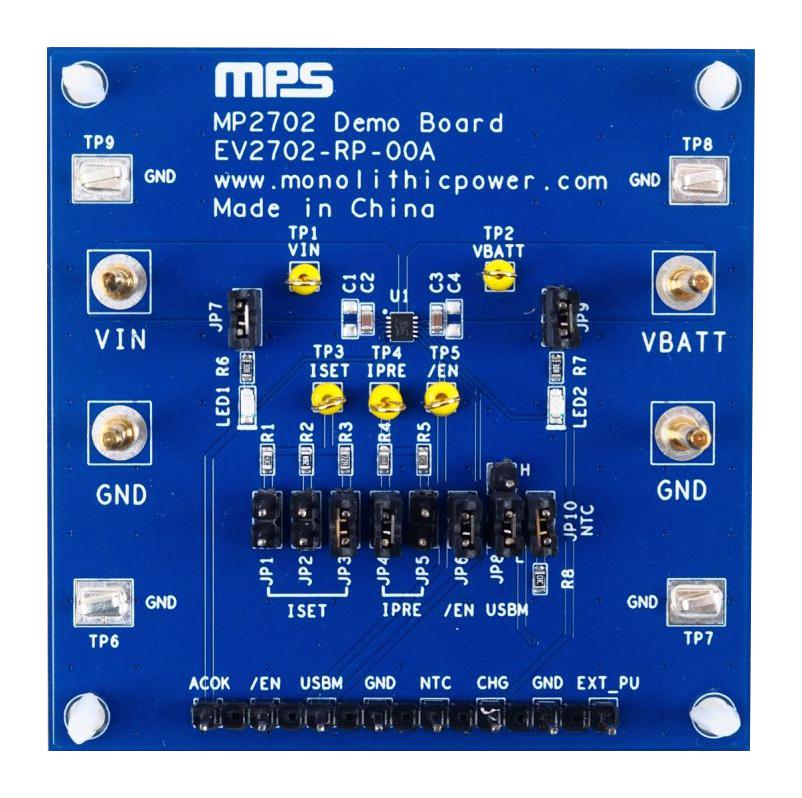

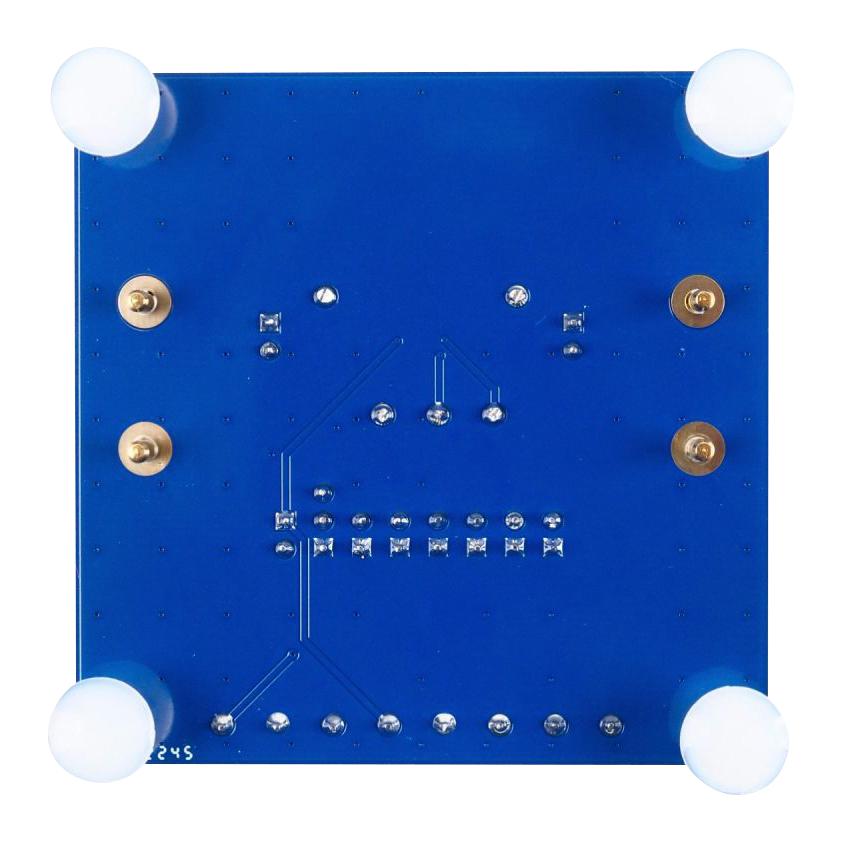

EV2702-RP-00A is a 26V, 1A, linear charger with configurable JEITA and EN control evaluation board. It is designed to demonstrate the capabilities of the MP2702, a 26V, 1A, highly integrated linear charger for Li-ion and Li-polymer batteries. The MP2702 has a dedicated ISET pin to set the charge current (ICC) by connecting a resistor from this pin to ground. The USBM pin sets the input current limit (IIN-LIM) prior to setting ICC. The MP2702 also has a minimum input voltage limit (VIN-LIM) to reduce ICC when the input power is overloaded. The MP2702 has a dedicated EN pin to enable or disable charging. After charging is disabled, the quiescent current in either the IN or BATT pin is minimized. The MP2702 supports a fully customizable JEITA profile with configurable temperature windows and actions. The EV2702-RP-00A supports an operating voltage up to 6V, and its absolute maximum input voltage (VIN) can be up to 26V.
- 4V to 6V input voltage (VIN) range
- 4.2V battery charge regulation voltage (VBATT-REG) at VIN = 5V
- Charge current (ICC) range from 0.02A to 1A at VBATT = 4V
Notes
MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Product details
Other details
| Brand | MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number | EV2702-RP-00A |
| Quantity | Each |
| Technical Data Sheet EN |  |
