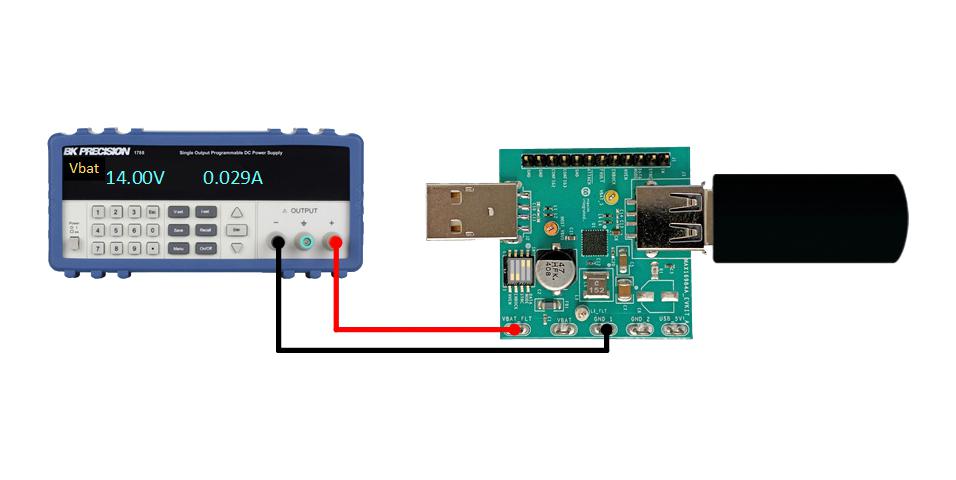

MAX16984A evaluation kit (EV kit) demonstrates the MAX16984A automotive high-current, high-efficiency, step-down DC-DC converter with integrated USB Type-A controller. In addition, the device also includes 1GHz bandwidth USB 2.0 D+/D- protection switches which provide ESD and short-to-battery protection for low-voltage transceivers. MAX16984A features integrated host-charger portdetection circuitry adhering to the USB 2.0 specification, the USB-IF BC1.2 battery charging specification, Apple iPod/iPhone/iPad® and Samsung® charge-detection termination resistors, and Chinese Telecommunication Industry Standard YD/T 1591-2009. The MAX16984A integrates high-side current sensing and voltage adjustment circuitry to provide automatic USB voltage adjustment to compensate for voltage drops in captive cables associated with automotive applications.
- Automatic USB Voltage Adjustment by Integrated DC-DC Converter (310kHz - 2.2MHz)
- Proven PCB layout
- Fully assembled and tested
Other details
| Brand |
MAXIM INTEGRATED PRODUCTS |
| Part Number |
MAX16984AEVKIT# |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
